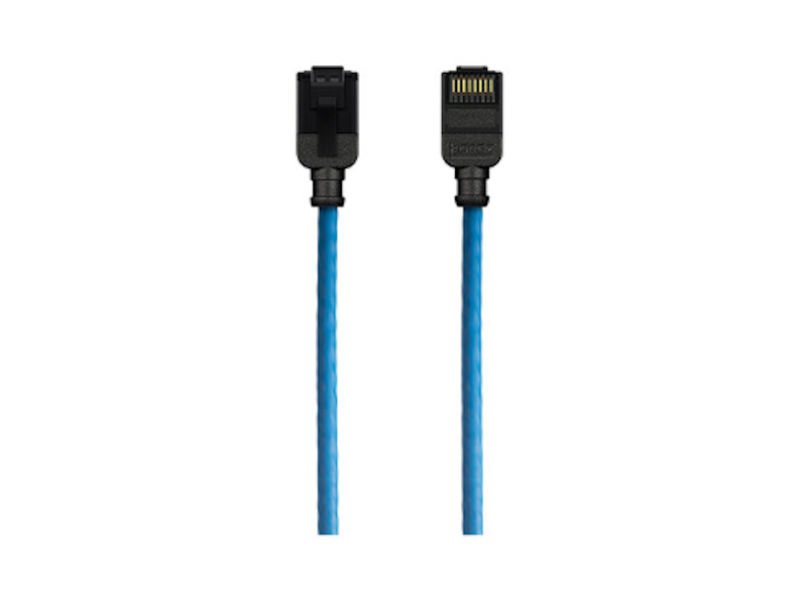

0.15m KORDZ PRO CAT6 UTP Patch Lead BLUE

Kordz PRO series CAT6 Network Patch Cord is a highly flexible, slim-profile, stranded 28AWG copper patch cord ideal for professional AV installations. Available in lengths from 0.15m to 30m the PRO patch cord features our custom designed compact RJ45 connector providing an almost unbreakable locking latch.Engineered and constructed to ensure installation success and longevityExceeds all Category 6 ANSI/TIA 568.2-D standards for all frequencies from 1 to 250 MHzUTP 28AWG CAT6 slim-profile network patch cordUL (CM) fire rating568B wire connection configurationOverall diameter of 3.9mmØNew compact design connector with 2000 bend cycle lock tabAvailable in 7 colours - Black, blue, grey, green, yellow, red & whiteAvailable in lengths from 0.15m to 30.0m lengthsCategory 6 Network Patch Cord Specification StandardApplication Standards:ANSI/TIA-568.2-DIEC11802EN50173Performance Standard:≤ 10.0m - Category 6 Component Tested> 10.0m - Category 6 Channel TestedWiring method: T568-BCertified Data Rate: 1 Gbps (Gigabit ethernet)Supported Data Rate: ≥ 1 Gbps (Gigabit ethernet)Certified Bandwidth: 1 to 250 MHzSupported Bandwidth: ≥ 250 MHzMECHANICALCable Diameter: 28 AWG, 3.9mm/0.15”ØMaximum Cable Pulling Tension: 80 kgf/cmÇCable to Plug Tensile Strength: TBCCable Bend Radius: 11.7mm | 0.46inRecommended Total Mounting Depth: 27.7mm | 1.09inMating Cycles (max.): 1000 cyclesTemperature range: UL Temp rating - 75ºCCONSTRUCTIONConductors: Solid 28 AWG Oxygen Free Stranded CopperConductor Insulation: PolyolefinShielding: Not ApplicableCable Jacket Material: UL CM-rated PVCConnector Material: NylonContact Type: 3-prong for solid/stranded conductorsStrain Relief: Injection-moulded PVCELECTRICAL CHARATERISTICSConductor Resistance: 223Ω/kmInsulation Resistance: 10MΩ min @100V DC
