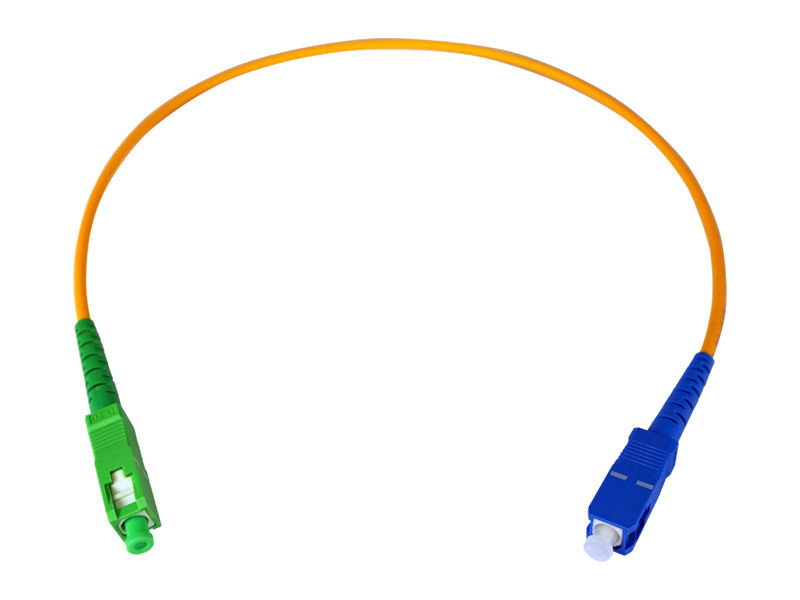

0.4m TELEVES OS2 SC/APC-SC/UPC Patch Lead

Single-mode (SM) optical-fiber patch cord pre-terminated with SC/APC connector in one end and SC/UPC at the other, to adapt different polishing in the interconnection of optical equipment. The sheath being LSFH, it is recommended for indoor use.Supplied in individual bag.Highlights:Low attenuationIncludes aramid fibers to reinforce its structureDca-s2,d2,a1 EuroclassITU-T G.657A2 fiber typeLSFH sheath, orange colourSC connectors with APC in one end and UPC at the other0.4m longEuroclass DcaEuroclass: Smoke Production s2Euroclass: Flaming droplets d2Euroclass: Acidity a1Fiber core type Single-mode (ITU-T-G.657A2)Optical fiber type category OS1Fiber core diameterμm9Fiber cladding diameterμm125Coating buffer diameterμm250Cable structure Tight bufferPlastic buffer diametermm0.85Outer sheath Diametermm3Outer sheath Material LSFHBlocking jelly NoAttenuation 1310nmdB/km< 0.8Attenuation 1490nmdB/km< 0.8Attenuation 1550nmdB/km< 0.8Insertion losses in connector 1dB< 0.5Insertion losses in connector 2dB< 0.5Return losses in connector 1dB> 60Return losses in connector 2dB> 50Optical connector type 1 SCPolishing type (Optical connector 1) APCOptical connector type 2 SCPolishing type (Optical connector 2) UPCShort tensionN450Long tensionN200Structure reinforcement element Aramid fibersShort crush (@100mm)N500Long crush (@100mm)N100Minimum bending radiusmm15Operating temperature°C-20 ... 70
