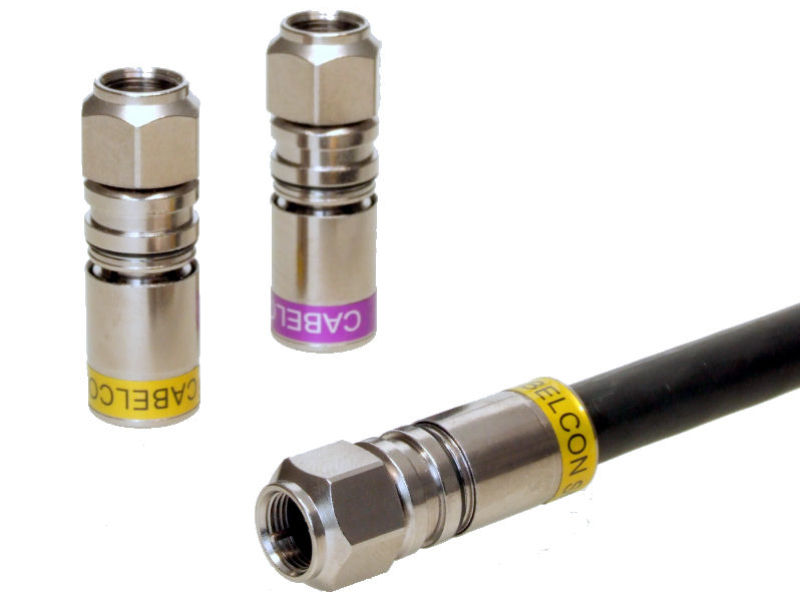

(1) CABELCON Compression F Plug 1.65mm

Compression ConnectorCX3 QuickMount™ connectors are true Cabelcon quality products, offering the highest performance required by leading operators.CX3 QuickMount™ RG11 connectors has no sleeve inside and are therefore extremely easy to install - even on hard PE cables, while ensuring superior pull off strength!CX3 QuickMount™ is of course NiTin-6™ plated. The unique Cabelcon EPDM sealing in the nut and the compression sealing to the cable makes CX3 QuickMount™ 100 % waterproof IPX8 (30m/8h).Extended DetailsExcellent pull strengthOperational to above 3 GHzTrue Cabelcon Nitin-6™ platingUnique Cabelcon PushPin™ systemQuickMount™ - for easy installationWaterproof IPX8 - 30 meter/8 hoursOne-piece connector – no loose partsFits standard RG11 and RG11 Quad cablesProfessional quality and excellent performanceTechnical Data (Typical)Operational to 3 GHzImpedance 75 OhmShielding Eff. 30 - 3000 MHz 120 dBTransfer Impedance 5-30 MHz 0,1 OhmReturn loss 0.3 - 500 MHz (typ) 48 dBReturn loss 500 – 1000 MHz (typ) 41 dBReturn loss 1000 – 3000 MHz (typ) 31 dBIMD (3rd order@2x100mW) -130dBcIMD (IP3 value) +85 dBmAMP ratings 7.5A@10°increase 10.5A@20°increaseMax. Tensile strength (overall) 450 NTool RequiredUse Code # 26628 (55-98029072)
