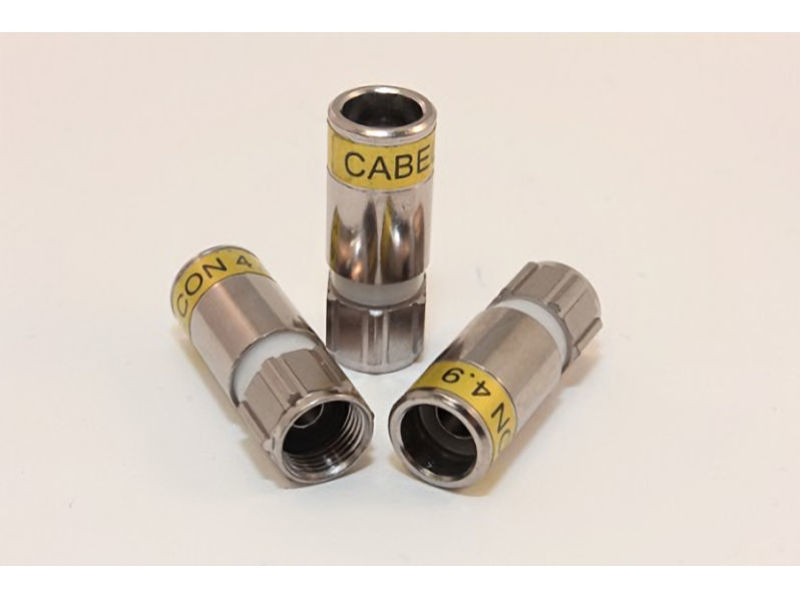

(1) CABELCON Compression F Plug 1mm
SKU: 55-99909941
Trade price hidden
Prices are reserved for approved trade accounts. Register and we'll unlock the full catalogue pricing.
Connector type F-6-TD 4,9For cable Ören, HD 103 A++ EcaFrequency Range: 0.3 – 3000 MHzImpedance (Nom.): 75 OhmAmp. Rating (measured): Cable dataProduct photo (c
Description & specs
Connector type F-6-TD 4,9For cable Ören, HD 103 A++ EcaFrequency Range: 0.3 - 3000 MHzImpedance (Nom.): 75 OhmAmp. Rating (measured): Cable dataProduct photo (calculated): Cable dataTransfer Impedance (CoMeT): Class A++ / 0,35 mΩ/m @ 5-30MHz / 0,09 mΩ/item @ 5-30MHzScreening Attenuation(CoMeT): Class A++ / >105 dB @ 30-1000MHz / >95 dB @ 1000-2000MHz / >85 dB @ 2000-3000MHzTemperature Installing: -5° to +50° CIntermodulation: 3rd Order (@2x+23dBm) -167 dBcOperating -40° to +70° C / Storing -40° to +70° CInner Conductor Resistance (@ 1 A DC): Cable dataSealing Test Insulation Resistance(IEC IP-code): IP X8 30 meter / 8 hours (@ 500 VDC) >200 GΩDielectric Strength: DC Test Voltage >6 KVO-rings: EPDM
