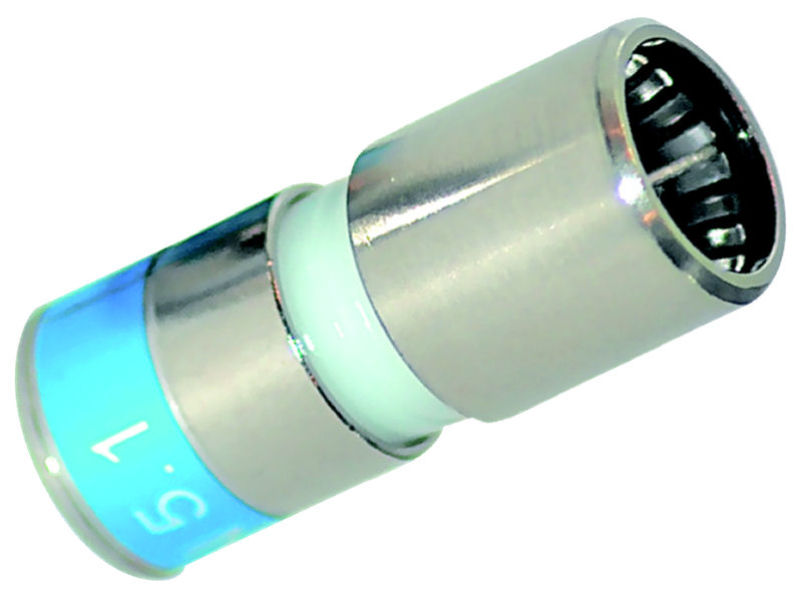

(100) CABELCON Compression F Plug 1mm A+

Cabelcon presents the new CX3 SpringConnect™ F connector with excellent mechanical and electrical specifications.Most ordinary push-on connectors have weak pull-off strength and poor screening capabilities resulting in egress/ingress problems. The new CX3 SpringConnect™ is different.Corning Cabelcon’s new CX3 SpringConnect™ comes with Cabelcon’s unique Nitin-6™ plated Secure Spring Technology.The CX3 SpringConnect™ is safe to use for all regular CATV installations, modem cables, satellite receiver installations and other set-top boxes.The typical disconnect pull-off value from the F-port is more than 3 kg. The continuity is effectively secured and SpringConnect™ remains RF-tight until it’s completely disconnected.The CX3 SpringConnect™ is already approved by the largest cable operators in Europe.Compatible with the following Compression tools:55-9802907255-98029075Technical Data CX3 3.9 (Typical)Operational to 3 GHzImpedance 75 OhmShielding Efficiency 30 - 1000 MHz >100 dBTransfer Impedance 5-30 MHz <2.5mOhm/mtrReturn loss 0.5 – 1000 MHz (typ) 45 dBReturn loss 1000 – 3000 MHz (typ) 40 dBIMD (3rd order@2x500mW) -152 dBcIMD (IP3 value) +103 dBmAMP rating cable dataMax. Tensile strength (overall) 300 NWaterproof 1 meter/24 hours with additional Seal Ring!
