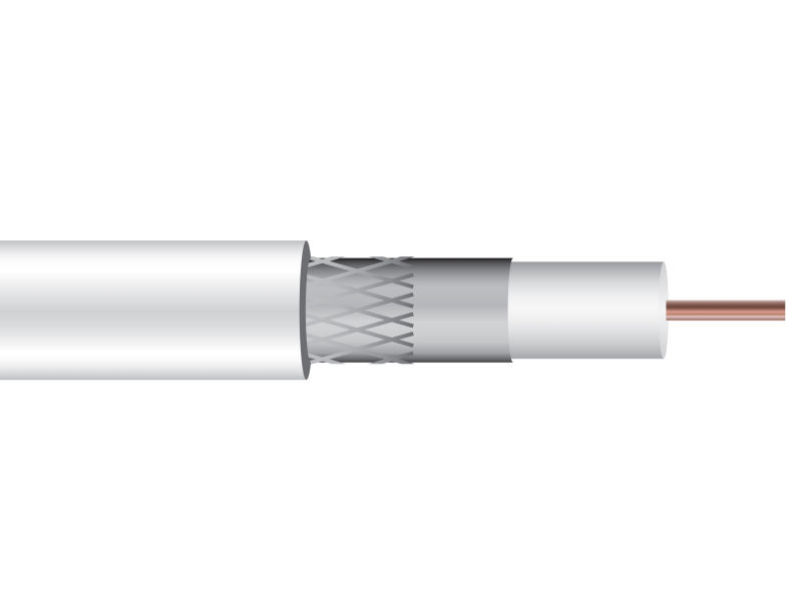

100m TRIAX TX100 Plus White PVC - CU

TRIAX cables are designed to meet the standards of today and the network demands of tomorrow. Highly shielded to minimise interference, each one has been meticulously updated and rigorously tested to conform to the new EN50575 fire safety standard.Maximum performance - cable is suited for the most demanding installations and offer:MAIN FEATURESHigh levels of interference protectionCrystal clear HD & 4K TV imagesUp and downstream data transmissionExceptional build quality and durabilityCost effective solution to meet the new RegulationMaximum safety, EN50575 compliant - all TRIAX cables are fully tested and classified according to the EN50575 Construction Products Regulation (CPR), in force from 1 July 2017, so they:Meet the high demands for safety in case of fireAre suitable for internal and external installationCONSTRUCTIONInner conductor - material: CuInner conductor - dimension: 1.0 +/-0.02 mmDielectric - material: Foam PEDielectric - dimension: 4.6 mmShield (First) foil 1 - material: AL bonded foilShield (Second) - braid material: Cu SnJacket - material: PVCSHIELDINGScreening attenuation @ 30-1000 MHz: >90 dBScreening attenuation @ 1000-2000 MHz: >75 dBScreening attenuation @ 2000-3000 MHz: >72 dBCHARACTERISTICSType: COAX 7mmLOSSAttenuation (at 20°C) @ 5 MHz: 2.0 dBAttenuation (at 20°C) @ 50 MHz: 4.2 dBAttenuation (at 20°C) @ 100 MHz: 6.5 dBAttenuation (at 20°C) @ 200 MHz: 8.7 dBAttenuation (at 20°C) @ 470 MHz: 13.3 dBAttenuation (at 20°C) @ 862 MHz: 18.4 dBAttenuation (at 20°C) @ 1000 MHz: 19.9 dBAttenuation (at 20°C) @ 1750 MHz: 26.9 dBAttenuation (at 20°C) @ 2150 MHz: 30.3 dBRETURN LOSSStructural return loss @ 5-470 MHz: >30 dBStructural return loss @ 470-862 MHz: >28 dBStructural return loss @ 862-2400 MHz: >25 dBELECTRICALImpedance: 75 ΩCapacity: 53 pF/mVelocity ratio: 83 %Inner DC resistance: <26 Ω/kmOuter DC resistance: <15 Ω/kmOPERATIONALApplication: IndoorFire Class: EcaDoP number: TR0021Notified Body: 1014Screening Efficiency: EN50117 (Class B)MECHANICALCable length: 100 mMinimum bending radius: 40 mmColour: WhiteNet Weight: 15,000 kgTara Weight: 0,200 kgTotal Weight: 5,200 kg
