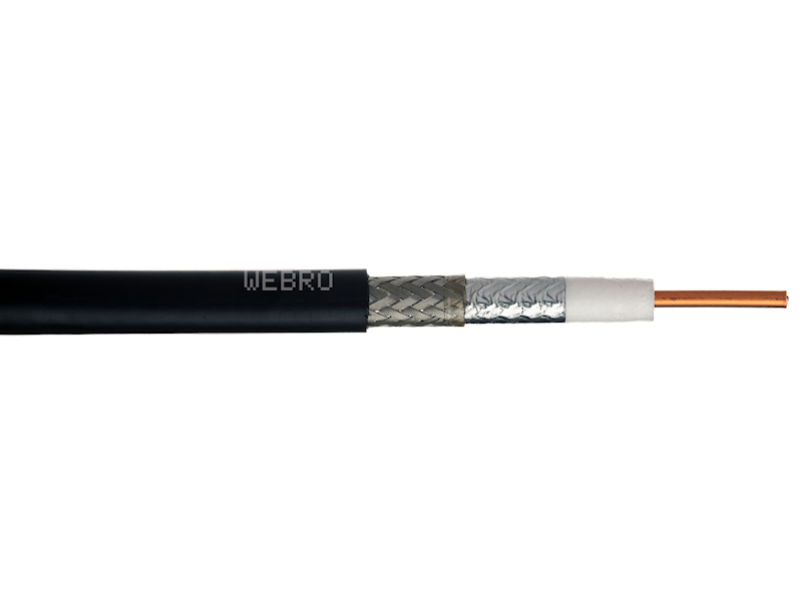

100m WEBRO WEB400 50Ω LSNH PE BLACK
SKU: 140400D-BLK-LSNH-100
Trade price hidden
Prices are reserved for approved trade accounts. Register and we'll unlock the full catalogue pricing.
WEB400 cable is suitable for many applications, including jumper assemblies in wireless communication and short antenna feeder runs. It consists of a 2.74mm CCA
Description & specs
WEB400 cable is suitable for many applications, including jumper assemblies in wireless communication and short antenna feeder runs. It consists of a 2.74mm CCA conductor, foam polyethylene insulation, bonded aluminium tape with tinned copper wire braid.PRODUCT CONSTRUCTIONInner Conductor: 2.74mm Copper-Clad AluminiumDielectric: Foam Polyethylene 7.25mm (Nominal)Screen: Bonded Aluminium Polyester Foil TapeScreen: Tinned Copper Wire Braid Coverage >90%Sheath: LSNH/PEMECHANICAL CHARACTERISTICSOverall Diameter: 10.10mm +0.30Temperature: Storage/Operation -15°C to +70°CMin. Installation Temperature: -5°CELECTRICAL & ENVIRONMENTAL CHARACTERISTICSInner Conductor DC Resistance: <4.60Ω/km @20°COuter Conductor DC Resistance: <5.60Ω/km @20°CNominal Capacitance: 75pF/mCharacteristic Impedance: 50Ω +3Velocity Ratio: 0.85ATTENUATION @20°CFrequency (MHz) | Attenuation (per 100m)50 | <3.2150 | <5.5220 | <6.7460 | <9.8900 | <14.11500 | <18.51800 | <20.52000 | <21.52500 | <24.45800 | <35.5RETURN LOSS @ 20°CFrequency (MHz) | Return Loss5-470 | ≥ 25 dB470-862 | ≥ 24 dB862-2150 | ≥ 23 dBCERTIFICATIONS & STANDARDSUKCA CPR Classification: Up To Dca to EN 50575: 2015 +A1:2016Coaxial Cables: BS EN 50
