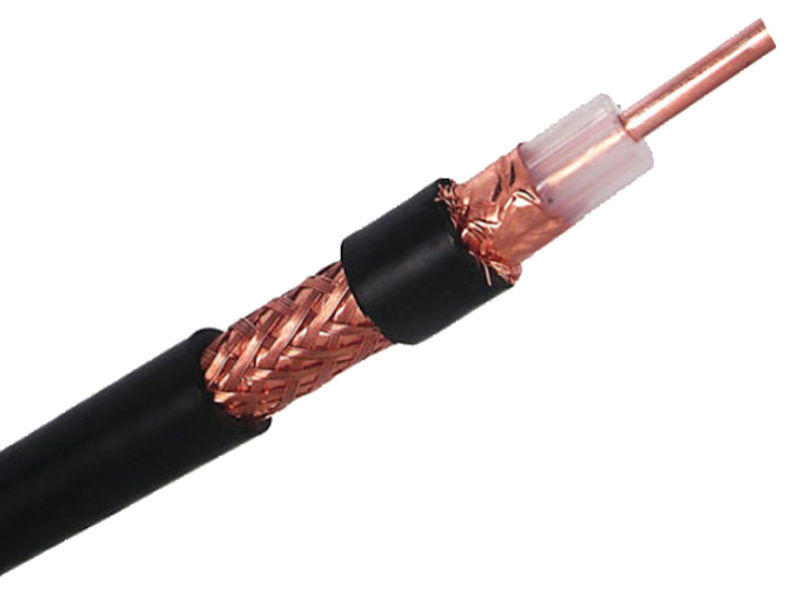

100m WESTFLEX 103 Coax PVC 50Ω Black
SKU: 480001E-BLK-100
Trade price hidden
Prices are reserved for approved trade accounts. Register and we'll unlock the full catalogue pricing.
Semi air spaced low loss 50 Ohm Coax CableIdeal for UHF and VHF or HF where extra performance is requiredMECHANICAL CHARACTERISTICS1. Inner conductor. Diameter:
Description & specs
Semi air spaced low loss 50 Ohm Coax CableIdeal for UHF and VHF or HF where extra performance is requiredMECHANICAL CHARACTERISTICS1. Inner conductor. Diameter: 2.62 mm Plain Annealed Copper2. Insulation: Diameter: 7.20mm (Nominal)3.1 Screen: Plain copper foil tape3.2 Screen: Plain Copper Wire BraidCoverage >40%4. Sheath:Diameter: 10.30 ± 0.30mm5. Cable:Storage/operating temperature: -15°C to +70°CMinimum installation temperature: -5 °CElectrical characteristicsDC resistance Inner conductor: 3.8 /km @ 20°CDC resistance Outer conductor: 8.8 /km @ 20°CCharacteristic Impedance: 50 ± 3OhmCapacitance: 80 pF/m (nominal)Velocity Ratio: 0.81Attenuation (d/B 100m @ 20°C5Mhz 0.850Mhz 3.5100Mhz 5.0200Mhz 7.5400Mhz 11.0800Mhz 16.51000Mhz 18.0
