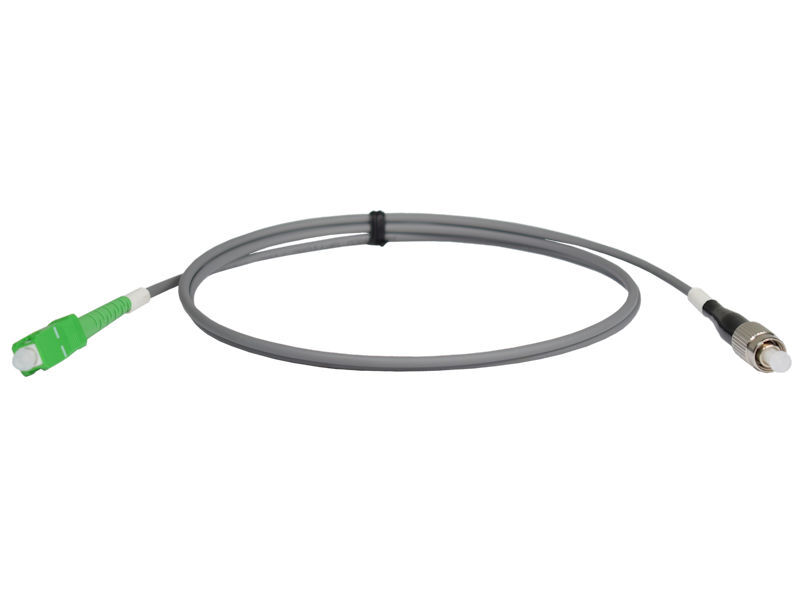

1m TELEVES SC/APC-FC/PC LSFH Patch Lead UG

Pre-connectorised single-mode (SM) fiber optic patch cord with SC/APC connector on one end and FC/UPC on the other, so it also serves as an adapter between devices that have different connectorisation. It has an armored stainless steel tube that surrounds the fiber, a tensile protective aramid mesh, and an LSFH cover resistant to ultraviolet radiation.Thanks to the stainless steel armour, it is perfect for use outdoors and even underground, as it is specially designed to withstand adverse weather conditions, impacts and pulls.Supplied in individual packaging.Highlights:Low attenuationProtection of aramid fibers and flexible stainless steel tubeOutstanding durability: It incorporates a flexible stainless steel armour that provides excellent mechanical resistance, and protects the fiber against any type of physical aggression: impacts, pulls, footsteps...Fiber type G.657A2LSFH Cover with UV Protection, GreySC/APC-FC/UPC ConnectorsAvailable in different lengthsFiber type Singlemode (ITU-TG.657A2)Fiber core diameterμm9Fiber cladding diameterμm125Fiber structure diametermm0.9Diameter Outer covermm3Material Outer cover LSFHDimming 1310nmdB/km< 0.4Dimming 1490nmdB/km< 0.4Dimming 1550nmdB/km< 0.3Insertion losses in connector 1dB< 0.5Insertion losses in connector 2dB< 0.5Return losses in connector 1dB> 60Return losses in connector 2dB> 50Optical connector type 1 S.C.Polishing Type (Optical Connector 1) APCOptical connector type 2 F.C.Polishing Type (Optical Connector 2) CPUTraction in installationN440Traction protection element Aramid fibers and flexible stainless steel tubePermanent crush (@100mm)N1000Minimum curvature radiusmm30Operating temperature°C-20...70
