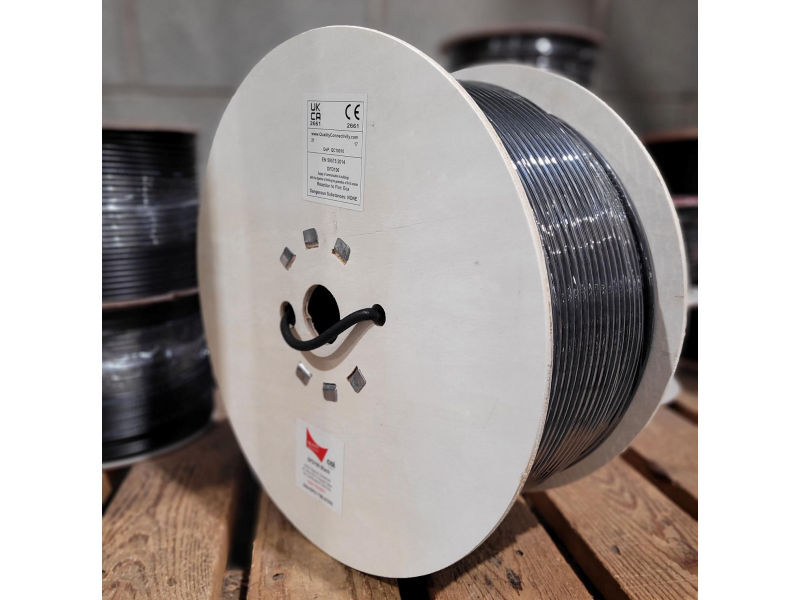

250m QING DFD100 Black LSF

Class A+ 3GHz screened, pure copper coaxial cable is expertly manufactured to convey high-quality Digital/Satellite HDTV besides HD-SDI CCTV signals. Key Features • Premium Quality: Made to the BS EN 50117-1:2002 standards, it adheres to the stringent CAI Benchmark CAI-007-C / 100 / 06-2016• Class A+ Screening: Ensures shielding against interference from external sources like Mobile phones and Wi-Fi• 4K TV and Ultra HD compatibility: Perfect for modern home entertainment systems• 3GHz minimal screening: Guarantees superior signal transmission• CAI approval: Deemed high quality enough to achieve the CAI Benchmark statusTechnical Specifications• Conductor DC Resistance: 26 Ohms/km• Outer Conductor Resistance: 15 Ohms/km• Rated Temperature: 80°C• Rated Voltage: 300V• Insulation Resistance: More than 500 MΩ/km• Nominal Capacitance: Less than 52.5pF/M (±10%)• Velocity Ratio: 80%• Nominal Impedance: 75Ω• Attenuation (@20°C): 1.6 DB/100M at 5MHz• Return Loss (@20°C): >23 DB at 5-30MHzQING DFD100 Black LSF is a high-grade coaxial cable to fit advanced digital entertainment systems and HD-SDI CCTV signals. It ensures strong signal transportation while inhibiting external intrusions from other devices.
