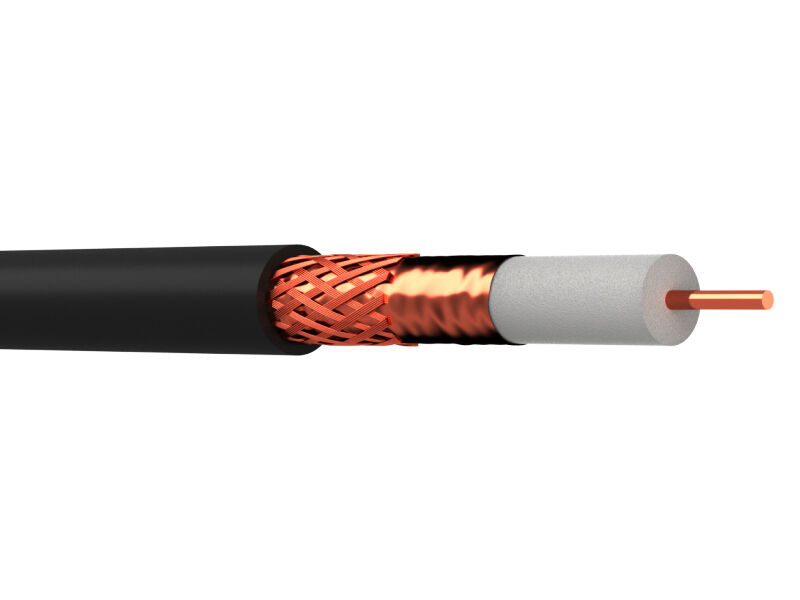

250m WEBRO WF100 Black LSZH Dca

A WF100 cable with a Low Smoke No Halogen outer sheath.MECHANICAL SPECIFICATIONS.TYPE: WF100 LSNHINNER CONDUCTOR: 1.0mm CUDIELECTRIC: Foam PEDIAMETER OVER DIELECTRIC: 4.8mmSCREEN: CU FoilBRAID AND COVERAGE CU: CU 40%SHEATHING MATERIAL: LSNHDAIMETER OVER SHEATH: 6.8mmCOLOUR: BlackWEIGHT APPROX Kg/Km: 47MINIMUM SETTING RADIUS: 65mmMAX TENSILE STRENGTH: 55NELECTRICAL SPECIFICATIONS:CHARACTERISTIC IMPEDANCE: 75 OhmCAPACITANCE pF/m: 55VELOCITY RATIO: 0.81ATTENUATION (dB 100m) at10 MHz: 1.850 MHz: 4.2100 MHz: 5.9230 MHz: 9.1300 MHz: 10.5470 MHz: 13.3600 MHz: 15.0860 MHz: 18.31000 MHz: 19.91350 MHz: 23.41750 MHz: 27.02150 MHz: 30.3RETURN LOSS:5-470 MHz: >23470-862 MHz: >20862-2150 MHz: >18
