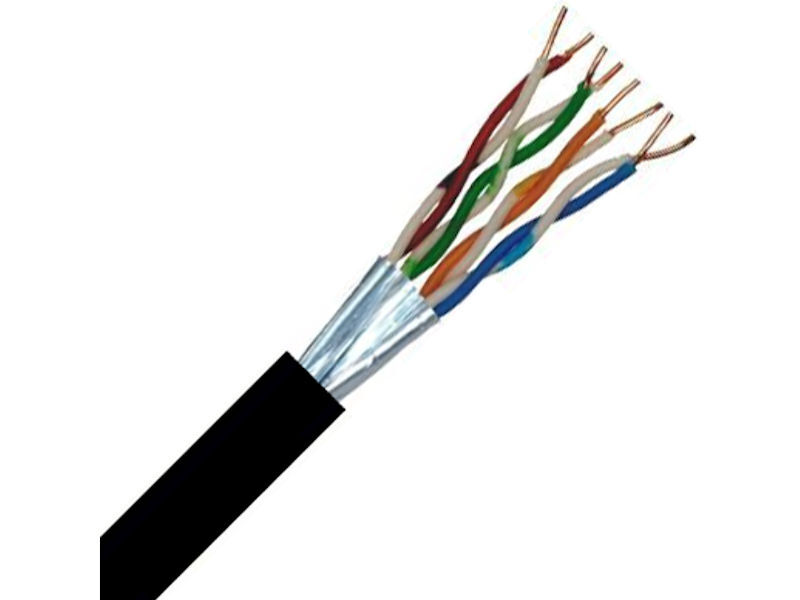

300m INSTALL® CAT6 PE EXTERNAL (Drum)

The INSTALL® CAT6 PE (Box), a product that embodies superior design and excellent performance, tailored perfectly to meet the diverse installation needs of the consumer. Key Selling Features: • Incorporation of UTP CAT6 4 Pair technology providing an impressive 250MHz data rate. • Solid Conductor CAT6 equips installers with a product compliant with both ISO/IEC11801, TIA/EIA568C.2 standards. • Capable of 1000Base-T data rate, ensuring high-speed, reliable data transmission. • Packaged neatly in a 300m box for easy installation. • The product boasts superior performance even under tough conditions, thanks to its maximum transmission rate of 1000Mbps.Technical Specifications: • Solid Bare Copper Wire conductor of size 23AWG (1/0.57 - ±0.005) ensuring robust and seamless performance. • 4 pairs of wires insulated with HDPE Ø 0.98mm (±0.02mm) material. • Outer sheath made from Polyethylene for added durability. • UV resistant to ISO4892-3. • Weighs approximately 58kg/km. • Operating temperature range: -40°C - +75°C. • Installation temperature range: -30°C - +65°C. • Certified with EN50575 CPR Class: Fca for safety compliance. • Conductor DC Resistance of 93.8 [Ω/km]. • Conductor resistance unbalance maximum of 5.0%. • Characteristic Impedance 100Ω (±15) • Velocity ratio of 72%. • Withstands Voltage of 600V and a Spark Test of 2.5kV. The INSTALL® CAT6 PE Box is a 300m, robust, high-fidelity conductor for seamless, high-speed data transmission, perfect for your installation needs.
