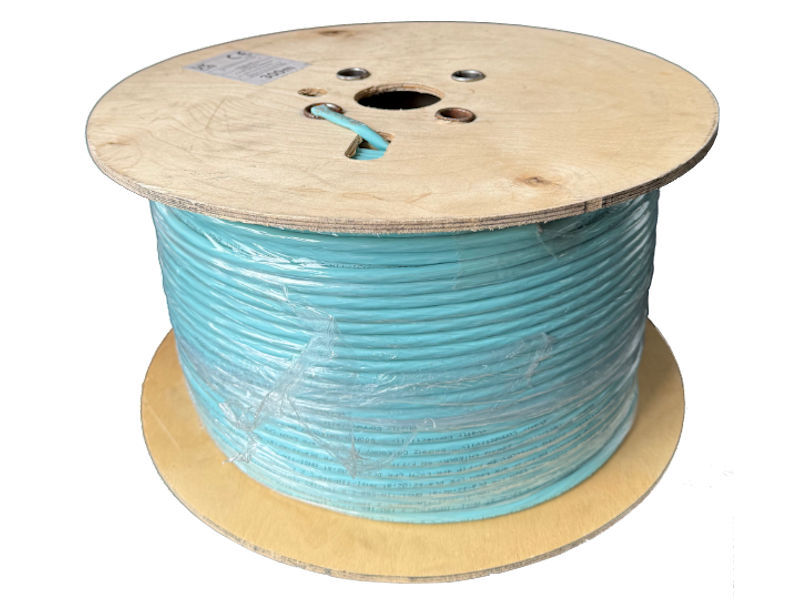

300m INSTALL® CAT6a LSZH Ice Blue (Drum)

The 300m INSTALL® CAT6a LSZH Ice Blue cable drum is purposefully crafted for expert installation. This superior, high-specification cable is designed for flawless signal transmission within data networks, CCTV over IP, home connectivity, digital signage, or control systemsKey Selling Features: • Supports 10 Gigabit Ethernet (10GBaseT / 10Gbps) and can effectively cater to bandwidth-intensive applications• Exceeds the performance standards of TIA/EIA 568-C.2 Category 6A, ISO/IEC 11801 Ed2 Class Ea; and EN 50173-1:2011• Sequential meter and batch marking ensuring full quality traceability• Enhanced with LSZH (Low Smoke Zero Halogen) outer sheath, making it a safer choice in event of fire• Encased in ice-blue sheath providing easy identification amid complex installationsTechnical Specifications: • 500MHz F-FTP CAT6A, 4 Pair, LSZH, 23AWG Solid Conductor• Individual and overarching Alu foil screening• Cable dimensions: Ø7.10mm with ±0.5mm tolerance; Sheath Thickness: 0.55mm with ±0.05mm tolerance • Operative between temperatures -40°C to +75°C; Installable between -30°C to +65°C• Carries Dca s2,d2,a1 classification as per EN50575 CPR• Conductor exhibits DC resistance of maximum 72 [Ω/km] and resistance unbalance of 5%• Characteristic Impedance is 100Ω (±15); Velocity Ratio 65% • Voltage rating of 600V with Spark Test 2.5kV• Embodies 515 kgCO2e per 1000m, as per CIBSE TM65 embodied carbon• Colours of Pairs: Pair 1- Blue, White; Pair 2- Orange, White; Pair 3- Green, White; Pair 4- Brown, WhiteThe 300m INSTALL® CAT6a LSZH Ice blue cable (drum) surpasses industry standards, designed for top-notch signal transmission supporting high bandwidth applications
