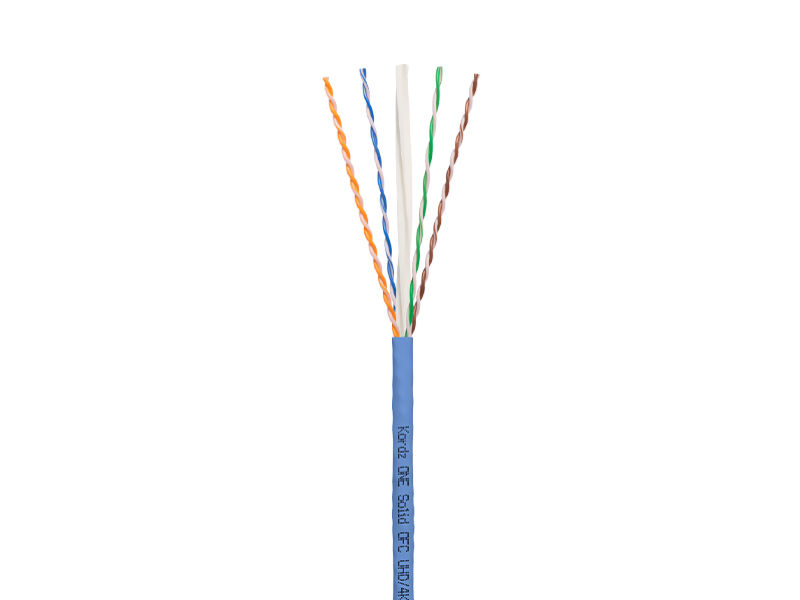

305m KORDZ ONE CAT6 LSZH Blue

CAT6 U/UTP CABLEThe Kordz ONE Series CAT6 cable has been designed and engineered to provide any application with a cost-effective, high-bandwidth and high-performance cabling solution. This makes for a more robust and complex system at Gigabit speed and full duplex transmissions.The new smaller and more compact Rapid- EZ-Reel packaging allows the easy flow of cable from the box, whilst keeping the cable from twisting and curling, greatly minimising snags during installation therefore saving precious time.Suitable for 10BASE-T, 100BASE-TX, 1000BASE-T/1000BASE-TX (Gigabit) & 5GBaseT, PoE & PoE+U/UTP Ethernet CAT6Four Twisted Pairs 24 AWG Oxygen Free Solid Copper ConductorsPVC Separator Reduces Crosstalk Between PairsSuitable for IDC TerminationsSupplied In The Durable Rapid-EZ-Reel Packaging - 305m (1,000ft)Metre Marked5 Colours Available: Blue, Green, White, Yellow & PurpleExceeds ANSI/TIA 568C-2.1 StandardAvailable In LSZH - IEC60332-1 And UL 444 CM fire rated versionsCPR Declared Performance: ONE-CAT6: Dca-s2, d2, a1 (EN 50575:2014+A1:2016)ONE-CAT6.pngTECHNICAL SPECIFICATIONSCONSTRUCTIONConductor: Solid OFC annealed bare copper wire 0.537 +0/-0.015mm [24AWG]Insulation: Polyethylene, 0.97 +/-0.05 mmTwisting: 4 twisted pairs, 2 cores to each pairTwisted Pair Colour Code: 1 - white-blue/blue, 2 - white-orange/orange, 3 - white-green/green, 4 - white-brown/brownCable Lay-Up: 4 pairs with different pitches, non-metallic cross separator (spine)Outer Diameter: 5.7 +/-0.3 mmMECHANICALBend Radius: without load ≥ 22.8mm /0.89”, with load ≥ 45.6mm /1.79”Temperature Range: During Operation: -20°C to 60ºC During Installation: 0°C to 50ºCELECTRICALDC Resistance: ≤ 9.38Ω / 100m at 20ºCResistance Unbalance: ≤ 5% at 20ºCInsulation Resistance (500V): ≥ 5000MΩ / km at 20ºCMutual Capacitance: ≤ 5.6 nF / 100m at 1kHzCapacitance Unbalance (Pair to Ground): ≤ 330 pF / 100m at 1kHzNominal Velocity of Propagation: nom. 67% cTest Voltage: 1kV DC / 1 min
