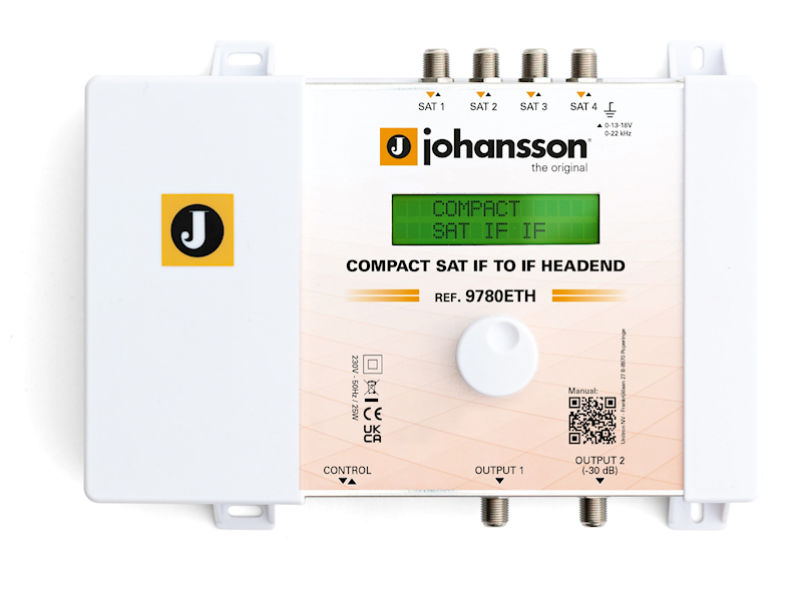

(5) JOHANSSON Satellite Headend ETH

The 9780ETH is the new generation convertor for satellite signals to be used in MDU’s. The compact plug-and-play module has a straightforward and easy configuration.Programmable satellite IF convertorUp to 32 DVB-S/S2 transponders4 satellite inputs (Quattro/Quad/Wideband LNB)Realtime AGC on all individual transpondersRead-out of input level strength: no need for field strength meter112 dBμV transponder output levelRemote accessible via www.ucloudserver.comThe state-of-the-art satellite convertor has no equivalent on the market due to its revolutionary technology:The most cost-efficient satellite convertor solution on the marketVery easy and fast installation, without the need for a field strength meterExtremely sharp filtersPerfect headend for your fibre installation to equalise and optimise the signalsExcellent quality of the output signal, the 9780 optimises the incoming satellite signal to assure supreme video quality on the end-users' TV-screensMade in Europe, for worldwide application4 Satellite inputs0-13-18V0-22kHzInputs: 4SAT (Wideband/Quattro/Quad)Outputs: 1 main (SAT) + 1 test port (-30dB)SAT Input Frequency range (MHz): 290 - 2340SAT Output Frequency range (MHz): 290 - 2340SAT Input level (dBµV): 40 - 95SAT output power (per transponder) (dBµV): 110SAT output power (35dB/IM3) (dBµV): 132SAT output level flatness (dB): <1SAT output level adjustment (dB): >40Slope adjustment (dB): 15SAT Gain (dB): >40Number of transponders: 32Conversion: Yes (all transponders)Transponder Bandwidth (MHz): 1 - 77 (per 1 MHz steps)Selectivity (dB): 35 (@ 1MHz)Return Loss (dB): 10Auto tuning: Yes (incoming transponders are copied from 1 input to output)ESD protection: All inputsDC@ SAT input: 13V/18V & 0/22kHz selectable by SWDC Load current @ SAT input (mA): 500Ethernet Port: Yes (for web interface / remote access)Operating temperature (°C): -5 to +50Power Supply (V): 100 - 240Power Consumption (W): 25Dimensions (mm): 217 x 165 x 59Weight (kg): 0.8
