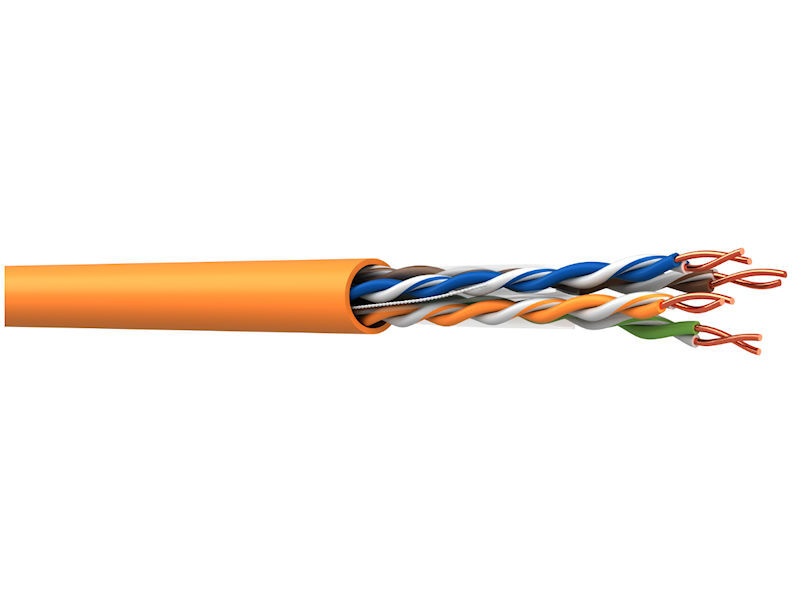

500m WEBNET CAT6a Orange (Drum)

WEBRO CAT6A Orange cable is tailored to support the needs of installers. Enhanced with Norden Category 6 UTP cables, this product extends beyond Category 6 / Class E specification, tested to 250 MHz frequency range to fulfil any gigabit application needsKey Selling Features: • Test-proven to impressively support Gigabit 1000 Base-T as well as 1000Base-Tx applications up to 100 metres• High EMS capability ensuring radiation minimisation and noise immunity maximisation• Exceptional alien cross talk performance for UTP (Unshielded Twisted Pair) cabling systems• Comprehensive CATEGORY 6 U/UTP 24AWG 4 PAIR CABLE design• B2ca rating provides the highest level of fire protection• Conforms to multiple compliance standards including IEEE 802.af, ANSI/TIA-568-C.2 Category 6, and ISO/IEC-11801, Class E / IEC 61156-5Technical Specifications: • Bare Copper 24 AWG Solid High Density PE conductor • Insulation Diameter of 0.93±0.05 mm following TIA/EIA 568-B standards• Includes a functional Rip Cord• LSOH Outer Jacket with 0.54±0.05 mm thickness and 6.0±0.2 mm external diameter• Compliance to CPR standards with a B2ca-s1a,d1,a1 rating• Proven transmission performance for a range of frequencies• Comes in a durable Pulley Box with dimensions of 400 x 400 x 220 mm• Electrical & Mechanical Characteristics highlight: 100 ±15 Ω impedance, 98.3 Ω/km DC Resistance and operating Temperature Range of -10°C to +65°CThe 500m WEBRO CAT6A Orange is an exceptional solution for installers, offering Gigabit application support and superior UTP cabling system performance
