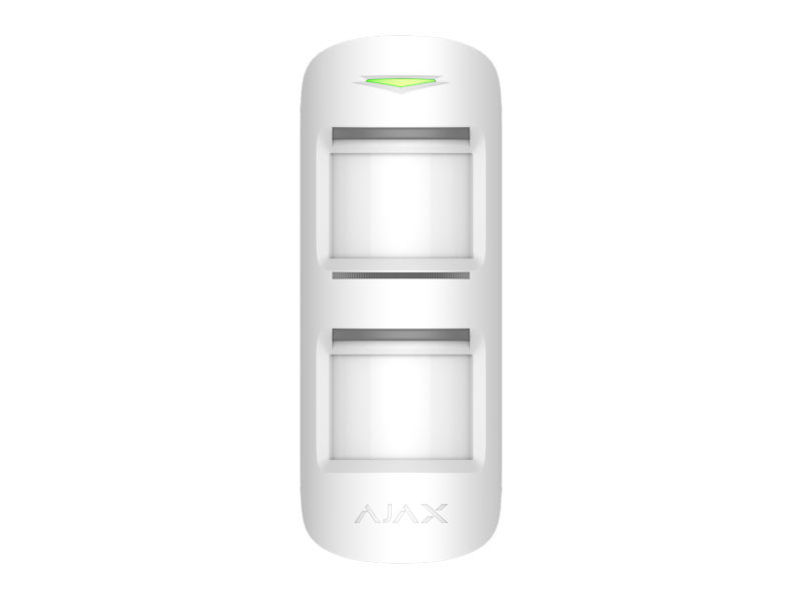

AJAX MotionProtect Outdoor White

MotionProtect Outdoor is a wireless outdoor motion detector for the Ajax security system. The detector communicates with the hub via protected Jeweller radio protocol at a distance up to 1,700 meters in the line of sight. MotionProtect Outdoor features protection against blocking the detector view (anti-masking system) and triggering by pets (pet immunity). The motion detection distance is adjustable: from 3 up to 15 meters.MotionProtect Outdoor can operate both on pre-installed batteries or use an external power supply. Depending on the detector settings, the batteries’ life is up to 5 years.Main features:Configured via Ajax app for IOS, Android , macOS and windowsCan be connected to a central monitoring station of a security companyMain light indicatorUpper light indicator and masking sensorSmartBracket attachment panel (perforated part is required for actuating the tamper button in case of any attempt to dismantle the detector)Sensing element: PIR sensor, 2 pcsDetection angle, horizontal: 90°Time for motion detection: From 0.3 to 2 m/sMotion detection distance: Adjustable, 3–15 m when the detector is installed at 1 m heightProtection against masking: YesPet ignoring function:Yes, height up to 80 cm when the detector is installed at 1 m heightProtection against false triggering: Yes, algorithmic analysisFrequency band: 868.0 – 868.6 MHz or 868.7 – 869.2 MHz, depending on the sales regionCompatibility: Operates only with all Ajax hubs, and range extendersMaximum radio signal power: Up to 20 mWRadio signal modulation: GFSKRadio signal range: Up to 1,700 m (where there are no obstacles)Power supply: 2 × CR123A, 3 VBattery life: Up to 5 yearsExternal power: 5 – 28 V DC, 200 mABody protection level: IP55Anti-tamper switch: YesInstallation method: Outdoors/indoorsOperating temperature range: From -25°С to +60°СOperating humidity: Up to 95%Accessories: Hood for MotionProtect OutdoorOverall dimensions: 183 × 70 × 65 mmWeight: 322 gService life: 10 years
