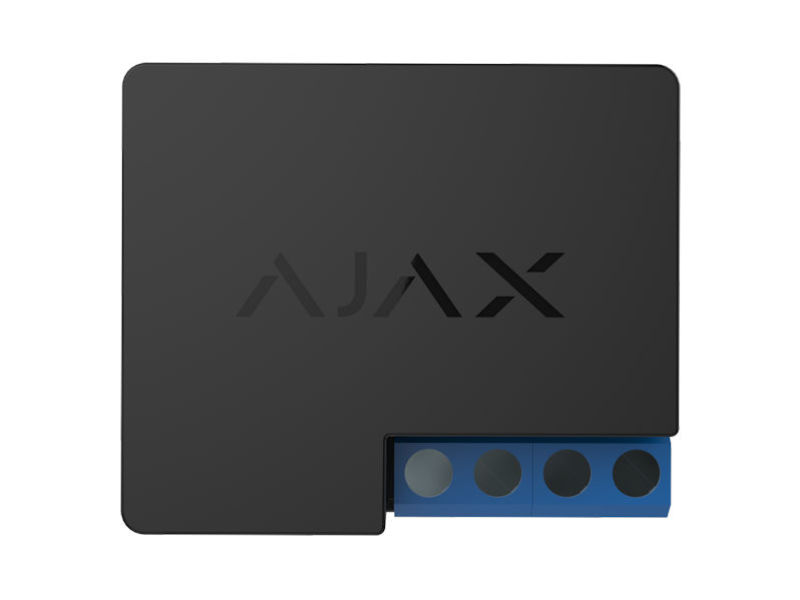

AJAX Relay (8EU)

Relay is a wireless, low-voltage relay featuring potential-free (dry) contacts. Use Relay to remotely switch on/off appliances powered by a 7–24 V DC source. Relay can operate both in pulse and bistable mode. The device communicates with a hub via Jeweller radio protocol. In the line of sight, the communication distance is up to 1,000 m.The Relay contacts are not galvanically connected to the device itself, so they can be connected to the input control circuits of various equipment to imitate a button, toggle switch, etc.Main features:Operates from 7-24 V DC voltage sourcesRated for 200,000 switch onsMaximum load of 5A at 36V DC / 13A at 230V ACInstalled into electric switchboard or junction boxActuating element: Electromagnetic relayThe service life of the relay: 200,000 switchingsSupply voltage range: 7 – 24 V (DC only)Voltage protection: Yes, min — 6.5 V, max — 36.5 VMaximum load current*: 5 A at 36 V DC, 13 A at 230 V ACOperating modes: Pulse and bistablePulse duration: 0.5 to 255 secondsMaximum current protection: NoParameter control: Yes (voltage)Device energy consumption: Less than 1 WFrequency band: 868.0 – 868.6 MHz or 868.7 – 869.2 MHz depending on the region of saleCompatibility: Operates only with all Ajax hubs, and range extendersEffective radiated power: 3.99 mW (6.01 dBm), limit — 25 mWModulation of the radio signal: GFSKMaximum distance between the device and the Hub:Up to 1000 m (any obstacles absent)Communication ping with the receiver: 12 – 300 sec (36 sec default)Shell protection rating: IP20Operating temperature range: From 0°С to +64°С (ambient)Max. temperature protection: Yes, over 65°C at the place of installation or over 85°C inside the RelayOperating humidity: Up to 75%Dimensions: 39 × 33 × 18 mmWeight: 25 gService life 10 years
