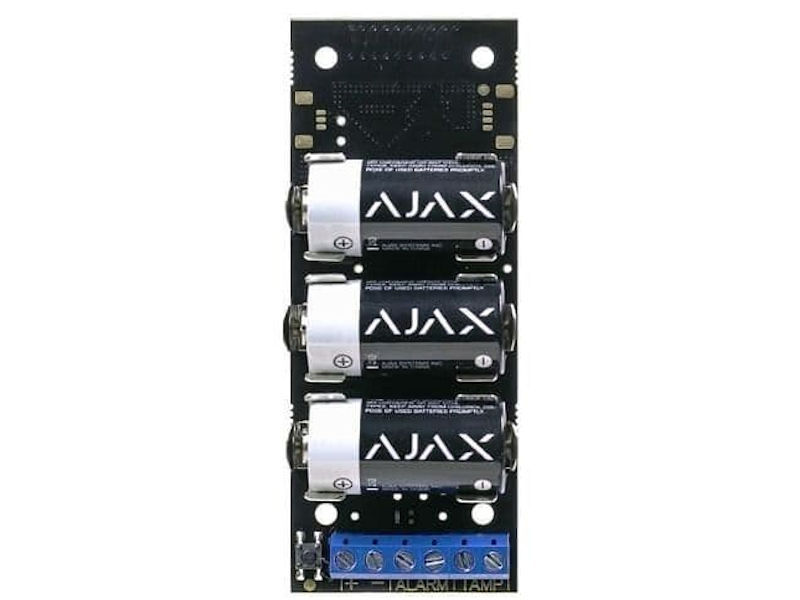

AJAX Transmitter (8EU) GB

Module for integrating a third-party wired detector or device into the Ajax security system. Transmitter allows you to connect the IR barrier, liquid level detector, gas leak detector, alarm button or any other device with the NC/NO contact type to Ajax.Authentication to protect module against spoofingJamming detection and transmitted data encryptionTwo-way secure communication between the module and the hub or range extenderMain features:Converts third-party detectors to the AJAX full-featured devicesCan be used as a power supply for third-party devices, for up to 5 yearsOutput of 3.3VGrade II (EN 50131)Operates up to 3 years without battery replacementConnecting a detector: ALARM and TAMPER (NO/NC) terminalsMode for processing alarm signals from the detector: Pulse or BistablePower: 3 × CR123A, 3V batteriesCapability to power the connected detector: Yes, 3.3VProtection from dismounting: AccelerometerFrequency band: 868.0–868.6 MHz or 868.7 – 869.2 MHz, depends on sales regionCompatibility Operates only with all Ajax hubs, and range extendersMaximum RF output power: Up to 20 mWModulation: GFSKCommunication range: Up to 1,600 m (any obstacles absent)Ping interval for the connection with the receiver: 12–300 secOperating temperature: From –25°С to +50°СOperating humidity: Up to 75%Dimensions: 100 × 39 × 22 mmWeight: 74 gService life: 10 years
