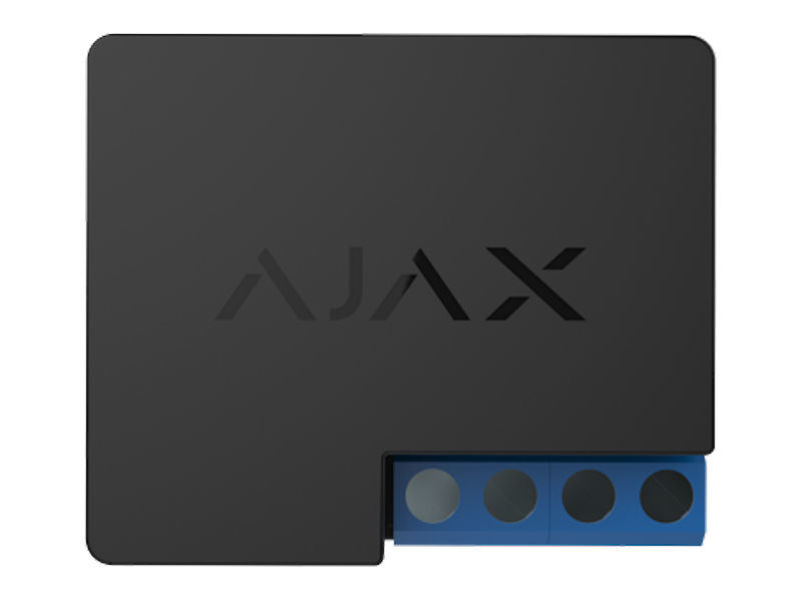

AJAX WallSwitch Black

WallSwitch is a wireless indoor power relay featuring a power consumption meter. The miniature body of the device is adapted for installation in a European-type socket.WallSwitch operates only within the Ajax security system (integration into third-party security systems is not provided), communicating with a hub via the protected Jeweller protocol. The communication range is up to 1,000 meters in the line of sight.Main features:Protects devices against overcurrent and voltage surgesOperates in bistable or pulse modesAllows controlling electricity consumptionConnecting WallSwitch to the hub takes less than a minuteAccess via Ajax app, IOs or AndroidActuating element: Electromagnetic relayThe service life of the relay: 200,000 switching-onsSupply voltage 110 – 230 V AC ± 10% 50/60 HzVoltage protection: For 230 V mains: max — 253 V, min — 184 VFor 110 V mains: max — 126 V, min — 77 VMaximum load current: 13 АMaximum current protection: Yes, 13 APower output (resistance load 230 V): Up to 3 kWOperating modes: Pulse and bistable (firmware version is 5.54.1.0 or higher. Manufacture date from March 5, 2020) / Only bistable (firmware version is lower than 5.54.1.0)Pulse duration: 0.5 to 255 seconds (firmware version is 5.54.1.0 or higher)Electricity meter function: YesPower consumption parameters control: Yes: current, voltage, consumed powerThe power consumption of the device in the standby mode: Less than 1 WFrequency band: 868.0 – 868.6 MHz or 868.7 – 869.2 MHz depending on the region of saleCompatibility: Operates with all Ajax hubs, and range extendersMaximum RF output power: Up to 25 mWModulation: GFSKRadio signal range: Up to 1,000 m (any obstacles absent)Shell protection rating: IP20Operating temperature range: From 0°С to +64°СMaximum temperature protection: Yes, 65°COperating humidity: Up to 75%Overall dimensions: 39 × 33 × 18 mmWeight: 30 gService life: 10 years
