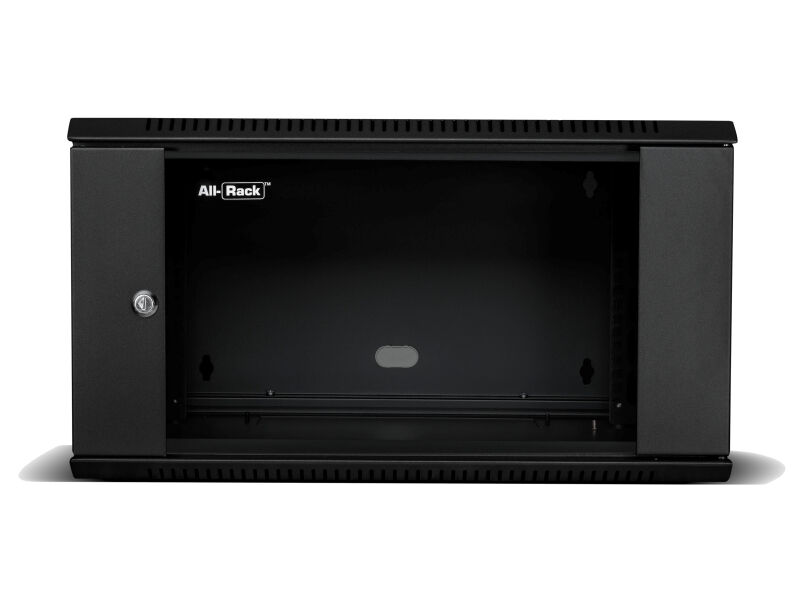

ALL-RACK Wall Cabinet 6U Textured Black

Features:Compatible with 19" rack mountable productsAdded ventilation around the cabinetTop & bottom cable entryRear plastic cable entryToughened glass front doorPlastic locking mechanism (latches on side panels)Barrel locking mechanism (front door)Earthing terminalsIntegral cable management in mounting profilesNumbered and adjustable mounting profilesGrommets on base thus avoiding direct contact with an abrasive surface if cabinet is not wall mountedDimensions:Size: 6UWidth: 565mmHeight: 310mmDepth: 450mmLoading Capacity:40kgMaterial:Steel Construction• Main body: 1mm• Side panels: 1.2mm• Front door: 1.2mm• Vertical rails: 1.5mm• Finish Surface: Powder Coating• Colour Code: RAL9005Side Panel Lock SystemRemovable and lockable side panel simplifies and secures your installation, comprising of Barrel Lock and sliding spring latch mechanism.Plastic Cable EntryThe standard configuration of the CAB6WB550 has a plastic knock-out cable entry on the rear.19’’ Device Mounting RailInternal numbered uprights with additional built in cable management. Using standard M6 cage nuts.Front DoorCan be mounted on the left or right hand side using the simple spring latch fixing posts at the top. Durable Fixed grommet rings are used to keep the door on a smooth hinge on the bottom.
