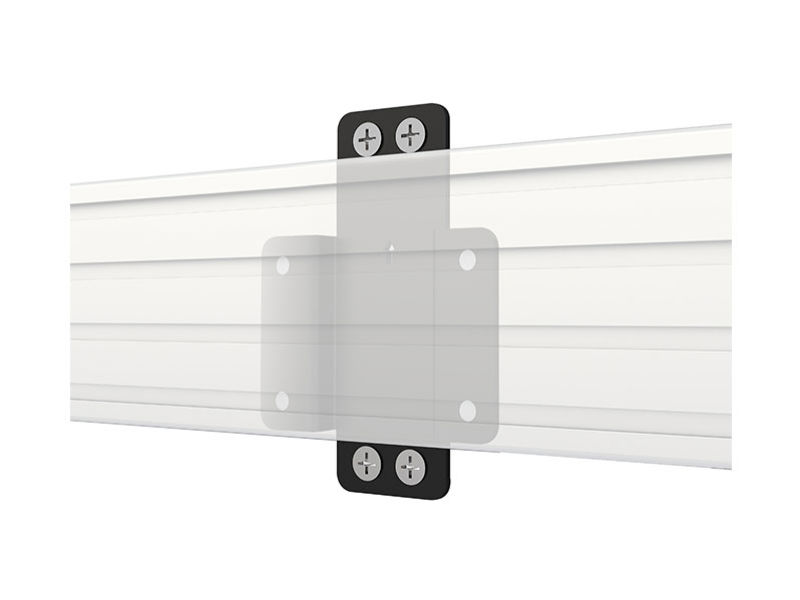

B-TECH System X Rail Mounting Bracket 19mm
SKU: BT8390-WFK2/B
Trade price hidden
Prices are reserved for approved trade accounts. Register and we'll unlock the full catalogue pricing.
The BT8390-WFK2 is a bracket designed to fix BT8390 mounting rails onto walls or poles, for the installation of video walls and other multi-screen configuration
Description & specs
The BT8390-WFK2 is a bracket designed to fix BT8390 mounting rails onto walls or poles, for the installation of video walls and other multi-screen configurations. The sturdy 5mm thick plate is designed for installations using micro-adjustment, pop-out or XL interface arms from the System X range.Designed to mount BT8390 horizontal mounting rails to the wallCan also be used for pole mounted videowall installationsIncreased depth allows for an enhanced tilt range when using tilt armsCountersunk screws sit flush with the plate for a neat installationCompatible interface arms: All System X ArmsDistance from wall (to front of rail): 49mmColour: BlackBrackets supplied (per pack): 1Quantity of brackets required per rail length (landscape installs):*Rail Length Qty0 - 2000mm 2pcs2001 - 3500mm 3pcs3501 - 5500mm 4pcs5501 - 7750mm 5pcs7751 - 8500mm 6pcs*Use B-Tech's online configuration tool to automatically calculate the quantity required based on your configuration.
