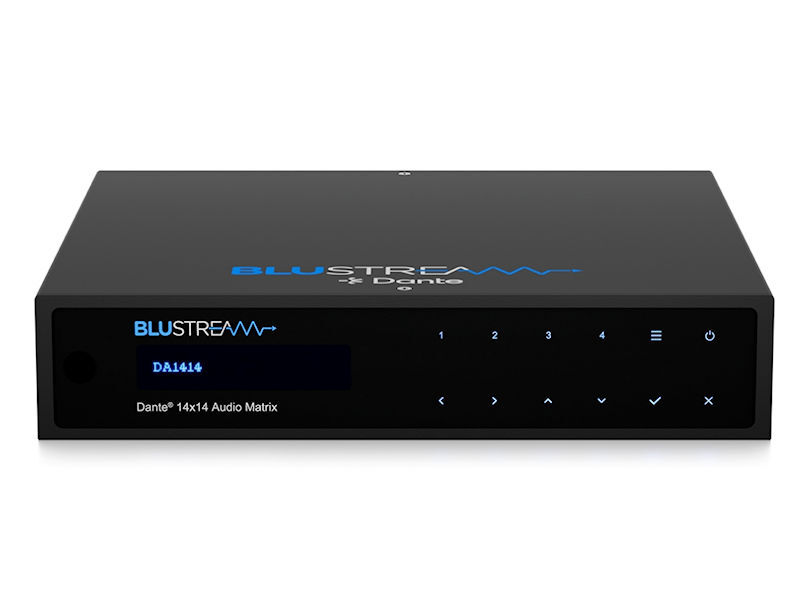

BLUSTREAM 14 x 14 Dante® Audio Matrix

The Blustream DA1414 is an advanced PoE+ powered audio matrix designed for efficient and seamless distribution of various audio sources across a multi-zone setup. The unit offers advanced audio processing features such as independent routing of mono audio signals, volume control, balance adjustments, and up to an 8-band parametric equaliser, including high/low shelf, and high/low pass filtering on both the input and output stages.Equipped with 8 x Dante/AES67, 4 x balanced/unbalanced analogue, and 2 x USB audio inputs, it supports matrix routing and processing to 8 x Dante/AES67, 4 x balanced/ unbalanced analogue, and 2 x USB audio channels.The system includes API switching functionality, giving users the ability to route Dante channels via third party control platforms, bypassing standard Dante Controller or Domain Manager platforms.The analogue inputs feature selectable 48V phantom power for microphone or line-level connectivity. Additionally, USB-C / USB-B connectivity options ensure maximum flexibility, catering for many diverse system designs.The DA1414 offers an advanced yet cost-effective solution for seamlessly routing and controlling audio signals within both commercial or residential environments, regardless of the source type.Key Features:14 x 14 audio Matrix with Dante/AES67, balanced / unbalanced analogue, and USB audio connectivitySupports separation (mono) of all audio channels with independent control resulting in switching of up to 14x14 audio feedsAnalogue audio inputs support both balanced and unbalanced audio, with MIC line level signalsMIC line level supports 48V/0.5mA Phantom powerSelectable USB audio between USB-C and USB Type-B inputs with USB audio class 2.0 supportSupports: volume, balance, 8 band parametric equaliser control with high/low shelf and high/low pass filter, per input and output channelSupports 48kHz 24-bit sampling rate for A/D and D/A conversionSupports 44.1, 48, & 96kHz sample rates @ 24-bitConfigurable Dante device latency (supports 2, 3, 4, 5 or 10ms configurable using Dante Controller)Features 2 x Dante LAN ports supporting network redundancySupports AES67 RTP audio transportSupports power via PoE+ (Class 4 IEEE 802.3at) via Primary LAN connection, or from local power supply where no PoE is availableControl via front panel, RS-232, TCP/IP, and web-GUI1U design for 19” rack mount integration - rack mounting kit includedSpecifications:Casing Dimensions (W x D x H): 437mm x 245mm x 44mmDimensions Including Connections (W x D x H): 437mm x 252mm x 44mmOperating Temperature: 32°F to 104°F (0°C to 40°C)Storage Temperature : -4°F to 140°F (-20°C to 60°C)Power Supply: Internal 110-250V ACAudio Input Connectors: 2 x RJ45, female (1Gb Dante Primary/Secondary network), 12-PIN Phoenix connector (4ch balanced/unbalanced analogue audio/MIC), USB-B, USB-CAudio Output Connectors: 2 x RJ45, female (1Gb Dante™ Primary/Secondary network), 12-pin Phoenix connector (4ch balanced/unbalanced analogue audio/MIC), USB-B, USB-CRS-232 serial port: 1 x 3-Pin Phoenix connectorTCP/IP Control: 2 x RJ45, female (1Gb Dante Primary / Secondary network)Box Contents:1 x DA14149 x 3 pin 3.5mm pitch Phoenix Connector1 x 19” Rack Mounting Kit4 x Mounting Feet1 x Quick Reference CardIEC Power Cable(s)
