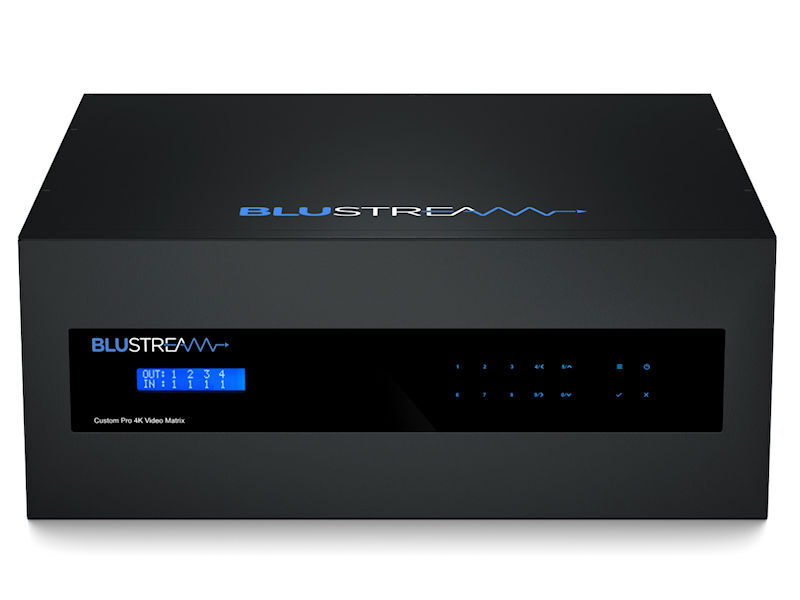

BLUSTREAM 16x16 Custom Pro Matrix Hub

The Custom Pro 4K Matrix achieves new levels of both performance and flexibility. AV installers can now easily specify their desired I/O structure and choose the additional control features required for a specific AV project. The Custom Pro Matrix has been specifically designed to operate in challenging AV environments. Its robust housing and interlocking board configuration make both installation and maintenance a seamless experience. Advanced optional features include audio breakout, simultaneous HDBaseT™ / HDMI outputs, RS-232 pass through, and a web browser interface module for enhanced control and configuration.Key Features:Custom Pro Matrix with 12 x modular bays for population of input / output / control boardsSupports up to 16x video inputs and 16x video outputs using a combination of 2-way and 4-way interchangeable input and output boardsSupports 4K UHD video up to 4K 60Hz 4:4:4*Optional Colour Space Conversion (CSC) boards support HDMI 2.0 18Gbps specification including HDR over HDBaseT™Optional CSC boards feature independent downscaling of up to 4K 60Hz 4:4:4 video input to the following formats:- 1080p @ 60Hz (for screens that do not support 4K)- 4K 60Hz 4:2:0 (for screens that do not support full 18Gbps 4K 60Hz 4:4:4)16 x analogue L/R audio inputs which can be embedded onto corresponding HDMI / HDBaseT™ zone outputs16 x IR outputs for routed control of local source equipment16 x IR inputs for distribution of IR to compatible Blustream HDBaseT™ ReceiversOptional RS-232 control board for bi-directional IR control with Blustream HDBaseT™ ReceiversOptional Analogue and Digital Audio breakout board with line-level volume controlWeb browser interface for control and configuration of MatrixControl of Matrix via front panel, RS-232, TCP/IP, IR and Web GUISupports PoC (Power over Cable) when used with compatible Blustream HDBaseT™ Receivers3rd Party drivers available for major control brandsAdvanced EDID management HDCP 2.2 compliant*Full 4K 60Hz 4:4:4 support is subject to input / output boards specifiedSpecifications:Audio Input Connectors: 16 x 3.5mm stereo jack (L/R)RS-232 serial ports: 1 x 9-pin RS-232 connectorIR Input ports: 16 x 3.5mm stereo jackIR Output ports: 16 x 3.5mm mono jackTCP/IP Control: 1 x RJ45, femaleRack-Mountable: 4U rack height, rack ears includedCasing Dimensions (W x H x D): 440mm x 173mm x 422m without feetDimensions Including Connections (W x H x D): 440mm x 178mm x 430mm with feetOperating Temperature: 32°F to 104°F (0°C to 40°C)Power Supply: Internal 100-240v AC
