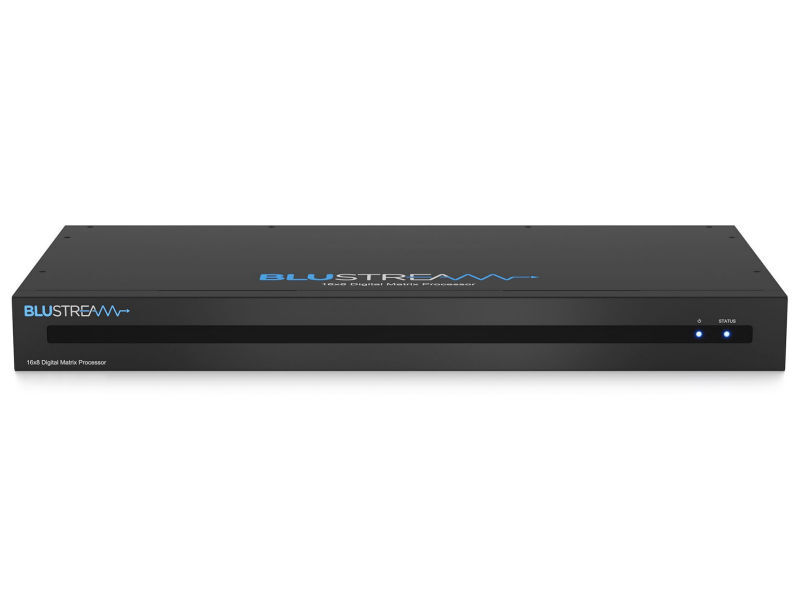

BLUSTREAM 16x8 Digital Matrix Processor

The Blustream DMP168 is an advanced 16x8 digital audio matrix, perfect for the distribution of multiple audio sources in a multi-zone installation.The DMP168 features advanced audio processing including volume, balance, high/low shelf, high/low pass filter and 4 band parametic equalizer control per input and output, independent lip-sync delay per input, stereo to mono separation, or combining of mono audio inputs, configurable output grouping, and assignable audio ducking.The DMP168 provides an advanced, but cost effective solution for ensuring that 2ch audio can be distributed around a multiroom system where there are a mixture of digital and analogue audio sources.Key Features:Features 8 x analogue L/R inputs, 4 x digital coaxial inputs, and 4 x digital optical inputs which can be switched to 8 x analogue L/R outputsSupports separation (mono) of all audio channels and independent control resulting in switching of up to 32x16 audio feedsSupports: volume, balance, high/low shelf, high/low pass filter, and 4 band parametic equalizer control per input and outputSupports independent gain adjustment for all analogue and digital inputsFeatures 8 x assignable bus inputs allowing mixing of source inputsFeatures output grouping to combine audio outputs for a single group controlCombining the output grouping feature with high/low pass filter results in up to 4 x 2.1ch audio outputsFeatures assignable audio ducking with independent level and ramp up/down rate adjustment Features 8x configurable presets Supports 48kHz 24-bit sampling rate for A/D and D/A conversionDigital audio inputs support resolutions up to 192kHz 24-bitSupports independent lip-sync delay (0-500ms) per outputFeatures input audio sensing, 2 x contact closures and 2 x trigger inputs allowing programmable events based on the presence of audio, NO/NC connections, and/or voltage between 2-15V AC or DC voltageSupports control via web-GUI, RS-232, TCP/IP and IR1U design for 19" rack mount integration - rack mounting kit includedSpecifications:Audio Input Connectors: 8 x Analogue RCA (Left / Right), 4 x Optical (S/PDIF), 4 x Digital RCA (S/PDIF)Audio Output Connectors: 8 x Analogue RCA (Left / Right)RS-232 serial port: 1 x 3-Pin Phoenix connectorTCP/IP Control: 1 x RJ45, femaleControl port: 4 x 2-Pin Phoenix connectorRack-Mountable: 1U rack height, rack ears includedCasing Dimensions (W x D x H): 440mm x 226mm x 44mmDimensions Including Connections & Feet (W x D x H): 440mm x 235mm x 51mmOperating Temperature: 32°F to 104°F (0°C to 40°C)Storage Temperature: -4°F to 140°F (-20°C to 60°C)Power Supply: Internal 100-240V ACBox Contents:1 x DMP1681 x IR receiver1 x 19" Rack Mounting kit4 x Mounting feet1 x Quick Reference Card1 x IEC Power Cable
