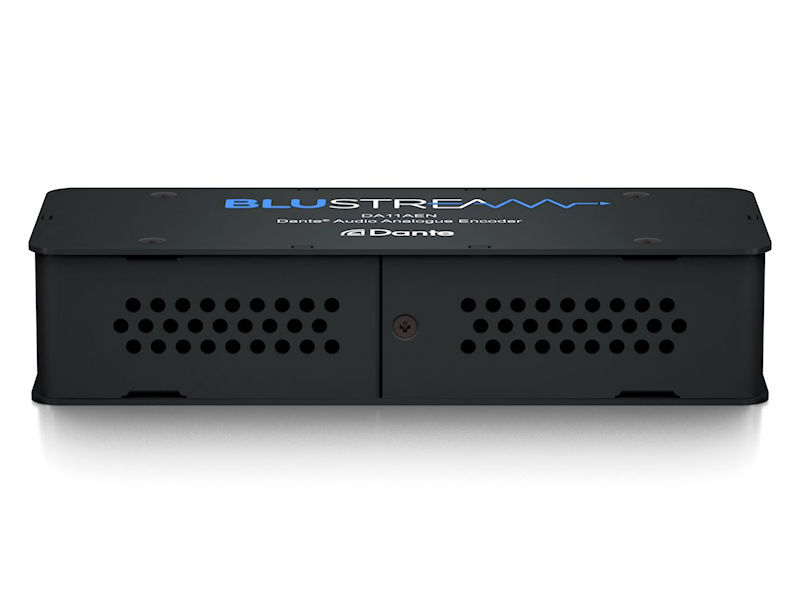

BLUSTREAM 2 Ch Analogue Audio to Dante®

The Blustream DA11AEN has been designed to encode unbalanced or balanced 2ch analogue audio to Dante® digital signal.It allows any non-Dante® audio source such as mixing consoles, amplifiers, computers and Blustream Matrix products or distribution products to be connected as a source within a Dante® network.The DA11AEN is a plug & play device that is powered using either PoE (Power over Ethernet) from any PoE network switch or via local 12v power supply input (sold separately).It also supports AES67 RTP audio transport with independent sensitivity adjustment for each channel as required.Key Features:Encodes unbalanced or balanced 2ch analogue audio to a Dante® digital signalSupports 44.1, 48 & 96 KHz sample rates @ 24 BitConfigurable Dante® device latency (supports 1, 2 or 5ms configurable using Dante® Controller)Independent input sensitivity control per channel: +24dBu to -10dBVSupports AES67 RTP audio transportFeatures Class 1 802.3af PoE for powering of product from any PoE switchDante® is a registered trademark of Audinate Pty LtdSpecifications:Audio Input Connectors: 6-pin Phoenix connector (2ch balanced / un-balanced analogue audio)Audio Output Connectors: 1 x RJ45, female (100Mbps Dante® network)Casing Dimensions (L x W x H): 120mm x 47mm x 26mmOperating Temperature: 32°F to 104°F (0°C to 40°C)Storage Temperature : -4°F to 140°F (-20°C to 60°C)Power Supply: Class 1 IEEE 802.3af POE PDBox Contents:1 x DA11AEN1 x Quick Reference Guide
