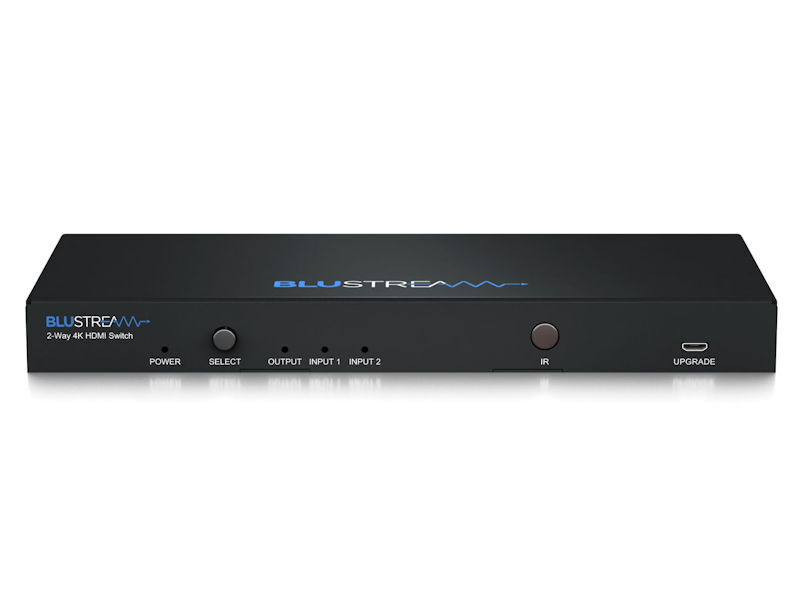

BLUSTREAM 2 Way 4K 18Gbps HDMI2.0 Switcher

The SW21AB-V2 is a 2-Way HDMI switch with integrated audio breakout. The switch supports full HDMI 2.0 and HDCP 2.2 with video resolutions up to and including 4K @ 60Hz 4:4:4.Key Features:Features 2x HDMI inputs which can be switched to single HDMI outputSupports full HDMI 2.0 specification 4K UHD video (4K @60Hz 4:4:4)HDCP 2.2 compliantSupports 3D signal displaySupports all industry standard video resolutions including VGA-WUXGA and 480i-4KSupports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specificationsHDMI audio breakout to analogue L/R audio and optical digital outputs concurrentlyCEC (Consumer Electronic Command) is blocked from the inputs to the end sink / displayControl via front panel and IRAdvanced EDID management*Auto switching only available on units with serial no. 70522400001 or above, or serial nunbers with a letter as the 4th digit (i.e xxxAxxxxxxx)Specifications:• Video Input Connectors: 2x HDMI Type A• Video Output Connectors: 1x HDMI Type A• Audio Output Connectors: 1x Optical (SPDIF) & 1x Analogue audio L/R (3.5mm stereo Jack)• IR Input Ports: 1x 3.5mm stereo Jack• Casing Dimensions (W x H x D): 196mm x 23mm x 94mm• Dimensions including connections (W x H x D): 196mm x 32mm x 104mm• Shipping Weight: 0.8kg• Operating Temperature: 32°F to 104°F (0°C to 40°C)• Storage Temperature : -4°F to 140°F (-20°C to 60°C)• Power Supply: 5V/2A DC
