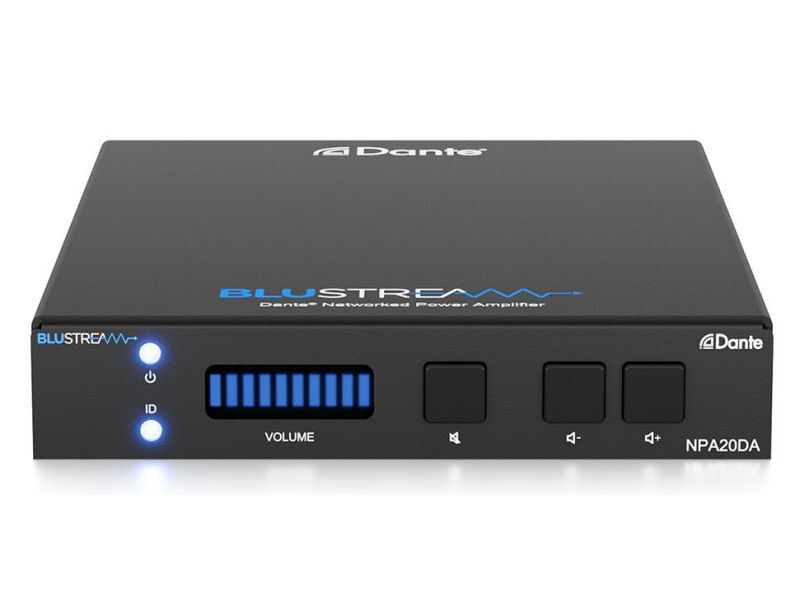

BLUSTREAM 2x10W Mini Dante® Amplifier

NPA20DA networked power amplifier delivers advanced audio integration within a commercial or residential AV installation.The NPA20DA features a 2 x 10W digital amplifier (1 x 20W mono) audio output and Dante® audio integration.The NPA20DA can be powered via PoE or PoE+ from a compatible network switch, or locally should the switch not support PoE. The unit also includes the ability to lower the amplifier power output subject to PoE capabilities, DSP with a 31 band EQ, audio delay for lip sync correction, and control via front panel, RS-232, TCP/IP, web-GUI or 12V trigger.Key Features:• Advanced network audio amplifier with Dante® integration• Supports 2 x 10W @ 4 / 8 ohm, 1 x 20W @ 4 / 8 ohm• Supports power via PoE+ on Dante® LAN connection or local power supply*• 2ch Dante® / AES67 audio input• DSP with 31 band EQ with +3dB/-10dB and audio delay• Local 0V / 5~12V input trigger for automated power control• Control via front panel, RS-232 and IP• Auto standby mode with signal sensingSpecifications:• Audio Inputs: 1 x RJ45 Dante® Audio connection• Speaker Outputs: 1 x 4-Pin Phoenix connector (4 / 8 ohm speaker)• RS-232 Serial Port: 1 x 3-Pin Phoenix connector• Trigger Input: 1 x 2-Pin Phoenix connector• Casing Dimensions (W x H x D): 112mm x 144mm x 22mm• Shipping Weight: 1.0kg• Operating Temperature: 32°F to 104°F (0°C to +40°C)• Storage Temperature: -4°F to 140°F (-20°C to +60°C)• Power Supply: PoE+ Type 2 Class 4, or 24V/1.25A DC 4-pin DIN (power supply not included)
