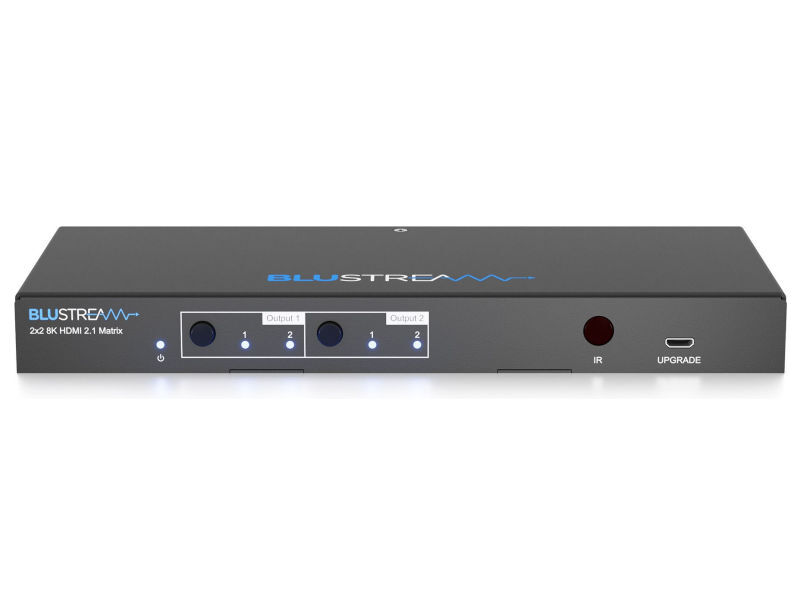

BLUSTREAM 2x2 8K HDMI2.1 Matrix

The MX22AB-8K HDMI2.1 matrix integrates source and display devices where the features and functionality of the HDMI2.1 chipset are being utilised for 8K 60Hz and 4K 120Hz signals. Independent routing of 2 x HDMI input sources to 2 x HDMI2.1 displays, the MX22AB-8K can auto-switch based on either detecting a 5V hot plug, or a new TMDS signal; or be manually controlled using RS-232, IR, or from the units front panel.Analogue and optical digital (S/PDIF) audio breakout allows for audio integration. The MX22AB-8K is HDCP2.3 compliant and has advanced EDID management of source devices connected.Key FeaturesFeatures 2 x selectable HDMI2.1 inputs that can be independently routed to 2 x HDMI2.1 outputsSupports HDMI2.1 specification including HDR (40Gbps maximum)Supports up to 8K 60Hz YCbCr 4:2:0 10bit, 8K 30Hz RGB/YCbCr 4:4:4 10bit, or 4K 120Hz RGB/YCbCr 4:4:4 10bitSupports ALLM (Auto Low Latency Mode) & VRR (Variable Refresh Rate)Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmissionAuto HDMI source switching via 5V and / or TMDS signal sensingManual HDMI source switching via front panel, IR and RS-232Audio breakout to analogue L/R audio and optical (S/PDIF) digital outputs concurrently5V / 12V IR CompatibleHDCP 2.3 compliant with advanced EDID management
