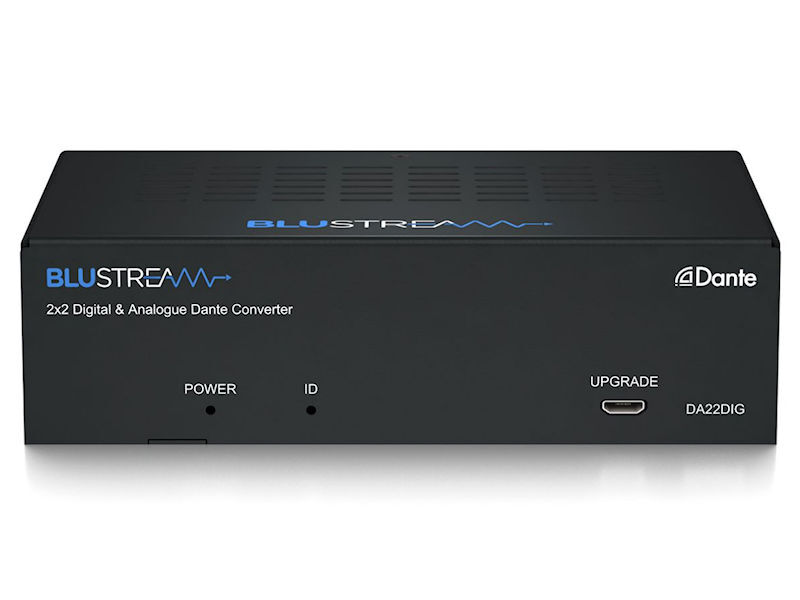

BLUSTREAM 2x2 Dante® Digital Audio

The Blustream DA22DIG has been designed to both encode 2ch analogue or digital audio to a Dante® digital signal, and decode a Dante® digital signal to 2ch analogue and digital audio.It features both analogue audio and digital audio connections, selectable via dip-switch and is a plug & play device that is powered using PoE (Power over Ethernet), or via 12V power supply. The DA22DIG also features support for microphones including 48V phantom power, as well as support for AES67 RTP audio transport.Key Features:Encodes 2ch analogue audio or digital audio to Dante® digital signalDecodes a Dante® digital signal to 2ch analogue audio and digital audioSelectable digital audio between optical toslink and coaxial RCA inputsConfigurable MIC audio input with 48V phantom powerIndependent sensitivity control for input channels, and gain control for output channelsSupports: 44.1, 48 & 96kHz sample rates @ 24 BitConfigurable Dante® device latency (supports 1, 2 or 5ms configurable using Dante® Controller)Supports AES67 RTP audio transportFeatures Class 3 IEEE 802.3af PoE for powering of product from any PoE switchSupports power via 12V DC adapter (supplied) for when network switch does not support PoESpecifications:Audio Input Connectors: 2 x Analogue Balanced/Unbalanced, 6-Pin Phoenix connector, 1 x Optical (S/PDIF), 1 x Coaxial (RCA)Audio Output Connectors: 2 x Analogue Balanced/Unbalanced, 6-pin Phoenix connector, 1 x Optical (S/PDIF), 1 x Coaxial (RCA)Network Connectors: 1 x PoE Dante® Ethernet Connection (RJ45)Configuration Switches: 4 x 16 Level Rotary Dials, 3 x 3-Position SwitchCasing Dimensions (L x W x H): 135mm x 80mm x 38mmOperating Temperature: 32°F to 104°F (0°C to 40°C)Storage Temperature: - 4°F to 140°F (- 20°C to 60°C)Power Supply: Class 3 IEEE 802.3af POE PD or 12V/1A DC, Screw Type ConnectorBox Contents:1 x DA22DIG1 x Mounting Kit1 x 12V / 1A DC Power Supply1 x Quick Reference Guide
