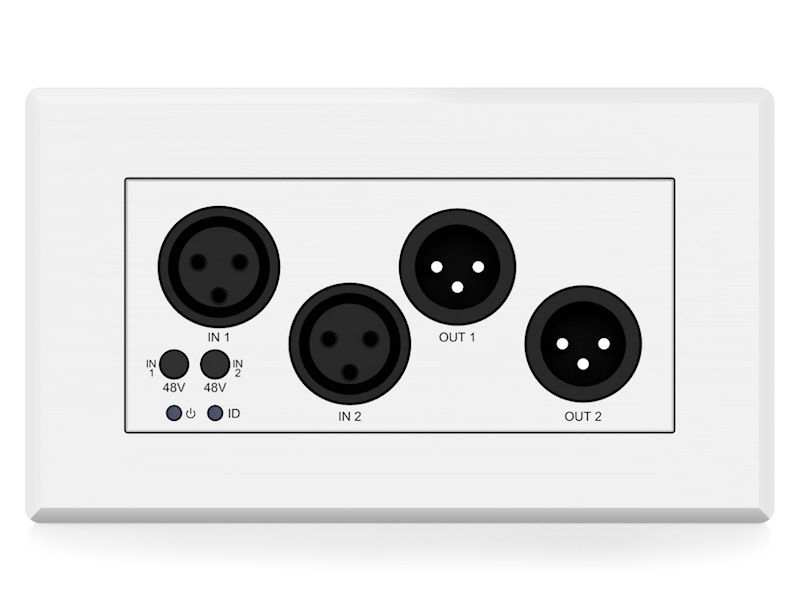

BLUSTREAM 2x2 Dante® XLR Audio Converter

The DA22XLR-WP-V2 is a multi-input / output wall plate to convert analogue audio within a digital Dante® networked audio system. The DA22XLR-WP-V2 features 2 input channels of balanced / unbalanced / MIC audio with switchable 48V phantom power and 2 output channels of balanced / unbalanced audio.The DA22XLR-WP-V2 is a plug & play device that is powered using PoE (Power over Ethernet), or via 12V power supply, offers support for AES67 RTP audio transport and magnetic faceplate design allows for both UK & EU backbox compatibility. The DA22XLR-WP-V2 is the ideal BYOD interface to a Dante® audio system.Key Features:Dante® network wall plate interface for 2 x audio inputs and 2 x audio outputsConverts 2 x balanced / unbalanced / MIC audio sources to Dante® audio channelsConverts 2 x Dante® audio channels to balanced / unbalanced audio outputsSwitchable 48V/0.5mA Phantom power for each MIC XLR inputAdjustable MIC / line sensitivity from +24dBu to -28dBV for each XLR inputAdjustable line gain from +20 dBu to -28 dBV for each XLR outputSupports: 44.1, 48 & 96kHz sample rates @ 24 BitConfigurable Dante® device latency (supports 2, 3, 4, 5 or 10ms configurable using Dante® Controller)Supports AES67 RTP audio transportFeatures Class 0 IEEE 802.3af PoE for powering of product from any PoE switchSupports power via 12V DC adapter (supplied) for when network switch does not support PoEMagnetic faceplate surround allowing for both UK & EU backbox compatibilitySpecifications:Module Dimensions (W x H x D): 136mm x 76mm x 45mm (without faceplate)Faceplate Dimensions (W x H x D): 146mm x 86mm x 5mmCut Out Dimensions (W x H x D): 109mm x 50mm x 36mmMounting hole spacing: UK 121mm CTC, EU 60mm CTCBackbox Mounting Depth: 40mm (minimum), 47mm (recommended), UK or EU double gangOperating Temperature: 32°F to 104°F (0°C to 40°C)Storage Temperature: - 4°F to 140°F (- 20°C to 60°C)Power Supply: Class 0 IEEE 802.3af PoE or 12V/1A DC 2-Pin Phoenix connectorAudio Input Connectors: 2 x Analogue balanced / unbalanced 3-Pin XLR connectorAudio Output Connectors: 2 x Analogue balanced / unbalanced 3-Pin XLR connectorNetwork Connectors: 1 x PoE Dante® Ethernet connection (RJ45)Configuration Switches: 4 x 5 position rotary dials (Sensitivity / Gain), 2 x Push button (48V Phantom power)Firmware Upgrade: 1 x Micro-USBBox Contents:1 x DA22XLR-WP-EU-V21 x Magnetic Faceplate1 x USB Serial UART Programming Cable1 x Quick Reference Card
