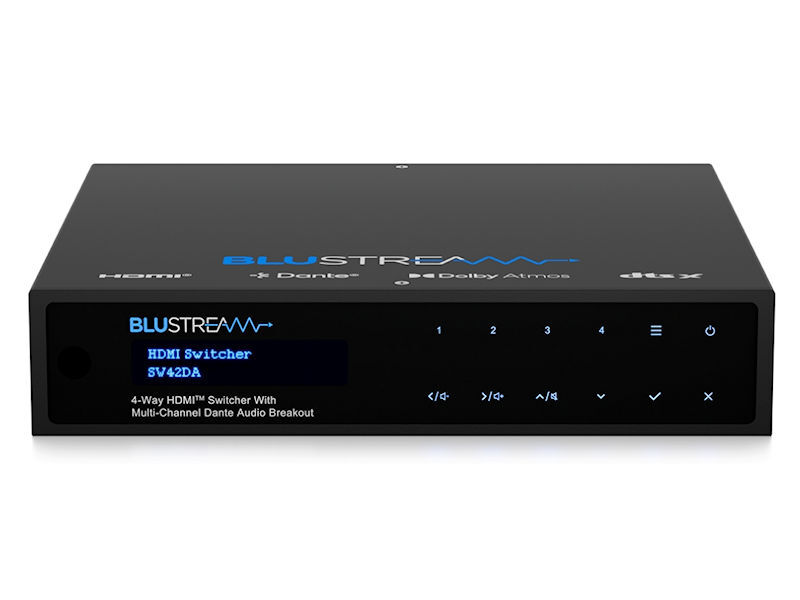

BLUSTREAM 4 Way HDMI Switcher Dual Output

The Blustream SW42DA is a 4-Way HDMI switch that has been designed to breakout, convert, and downmix embedded Dolby Audio or DTS Audio within a HDMI switching environment.The SW42DA will pass native video with the embedded multi-channel audio to compatible equipment on output 1, with a second HDMI output featuring optional video down-scaling from 4K 60Hz 4:4:4 or 4:2:0, video down to 1080p, with the native embedded audio, or down-mixed 2ch audio as required.Audio capabilities include the selection and manipulation of formats across both multichannel and 2ch downmixed. The Dante output allows for 9.1ch breakout and embedding into a Dante digital signal, and/or 7.1ch breakout with a separate 2ch down-mixed Dante output. Optical S/PDIF breakout (2ch or 5.1ch as required), individual analogue multi-channel breakout, and 2ch downmixed balanced/unbalanced analogue audio can also be broken out as required directly from the unit. The SW42DA provides an advanced, but cost effective solution for ensuring that 4K UHD video and multi-channel audio can be distributed around a Dante multi-room system where there are a mixture of 2ch and/or 7.1ch zones or 7.1.2ch / 5.1.4ch (9.1ch) audio, with multiple output resolution requirements. Perfect for cinema and media room set up's where local content would be shared within a multi-zone distributed system where either multichannel or down-mixed audio is required.Key Features:Features 4 x HDMI inputs which can be switched to the dual HDMI outputs simultaneouslySupports HDMI 2.0b 18Gbps specification, including 4K 60Hz 4:4:4 UHD videoSupports distribution of the latest HDR resolutions including HDR10/10+ and Dolby VisionHDMI output 1 replicates the HDMI input signal - up to 4K 60Hz 4:4:4 and 5.1.4ch / 7.1.2ch Dolby Atmos and DTS-HD multi-channel audioHDMI output 2 features an optional 4K video down-scaler, and 5.1.4ch / 7.1.2ch to 2ch Dolby Atmos and DTS-HD audio downmixing Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmissionHDMI audio breakout of Dolby Atmos and DTS-HD to up to 8 channels of Dante audio (7.1ch), with an independent 2 down-mixed channels of Dante audioHDMI audio breakout of Dolby Atmos and DTS-HD to up to 10 channels of Dante audio (7.1.2ch / 5.1.4ch)*HDMI audio breakout to 7.1ch balanced / unbalanced analogue audio outputsHDMI Dolby Atmos and DTS-HD 7.1 down-mixing to 2ch balanced and unbalanced audio ouputsSupports ARC/eARC including breakout to 7.1ch and 2ch downmixed analogue, and Dante audioSupports: 44.1, 48, 88.2 & 96kHz Dante® sample rates @ 24-bitConfigurable Dante® device latency using Dante® ControllerSupports AES67 RTP audio transportControl via TCP/IP, web-GUI, RS-232, front panel buttons, and infrared HDCP 2.3 compliant with advanced EDID management* The Dante 2ch down-mix channels can be re-allocated to allow for additional height channels (7.1.2ch / 5.1.4ch)
