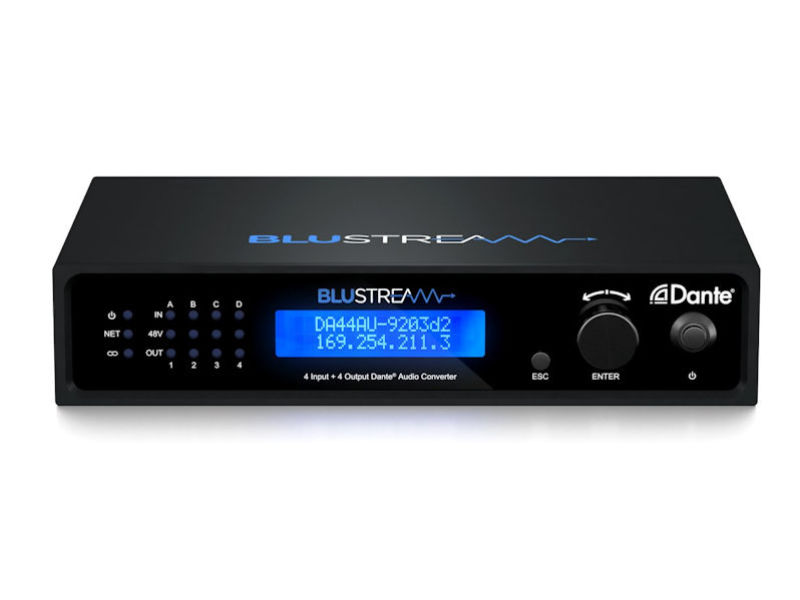

BLUSTREAM 4x4 Dante® Digital Audio

The Blustream DA44AU is a four input / four output Dante® digital audio converter. It allows any non-Dante® audio source such as mixing consoles, amplifiers, computers and Blustream Matrix / distribution products to be connected as an audio source within a Dante® network, as well as converting a Dante® signal back to an analogue audio signal.It supports both balanced and unbalanced audio as well as microphone line level inputs inc. 48V phantom power. The DA44AU supports AES67 RTP audio transport.Key features:Features 4 x analogue audio inputs that are converted to a Dante® compatible signalFeatures conversion of 4 x Dante® signals to analogue audio outputsAnalogue audio inputs support both balanced and unbalanced audio + MIC line level signalsMIC line level supports 48V phantom powerSupports 44.1, 48 & 96kHz sample rates @ 24-bitConfigurable Dante® device latency (supports 1, 2 or 5ms configurable using Dante® Controller)Independent input gain settings per channelSupports AES67 RTP audio transportSpecifications:Audio Input Connectors: 12-pin Phoenix connector (4ch balanced / unbalanced analogue audio / MIC)Audio Output Connectors: 2 x RJ45, female (1Gb Dante® network), 12-pin Phoenix connector (4ch balanced / unbalanced analogue audio / MIC)Casing Dimensions (W x D x H): 215mm x 145mm x 44mm without feetOperating Temperature: 32°F to 104°F (-5°C to +55°C)Storage Temperature: -4°F to 140°F (-25°C to +70°C)Power Supply: 12V/1A DCBox Contents:1 x DA44AU 1 x 12V/1A DC Power Supply 1 x Mounting Kit 1 x Quick Reference Guide
