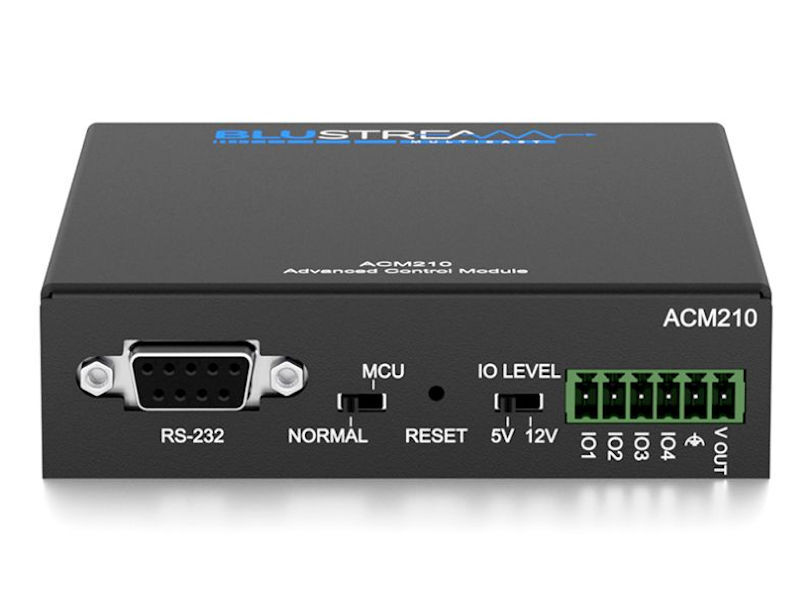

BLUSTREAM Advanced Control Module

The Blustream UHD Multicast distribution platform allows distribution of HDMI video over a 1Gb Network switch. The ACM210 Advanced Control Module allows for third party control of the Multicast system using TCP/IP, RS-232 and IR.The ACM210 includes a web interface module for control and configuration of the Multicast system and features 'drag and drop' source selection with video preview and independent routing of video, audio, IR, RS-232, USB / KVM and CEC.Major third party drivers simplify Multicast product installation and negate the need for an understanding of complex network infrastructures.Key Features:Web interface module for configuration and control of the Blustream Multicast systemIntuitive 'drag & drop' source selection with video preview feature for active monitoring of system statusAdvanced signal management for independent routing of IR, RS-232, USB / KVM, audio and videoAuto system configuration2 x RJ45 LAN connections to bridge existing network to Multicast video distribution network, resulting in:- Better system performance as network traffic is separated- No advanced network setup required- Independent IP address per LAN connection- Allows simplified TCP/IP control of Multicast systemRS-232 integration for control of Multicast systemIR integration for control of Multicast systemPoE (Power over Ethernet) to power Blustream product from PoE switchLocal 12V power supply (optional) should Ethernet switch not support PoESupport for iOS and Android App control3rd Party drivers available for major control brandsPlease note: Compatible with IP50HD, IP200UHD / IP250UHD, or IP300UHD / IP350UHD systems only. This product ships with firmware for the IP300UHD / IP350UHD system. IP50HD and IP2xxUHD will require a separate firmware at this time. Please contact support when using with these systems for assistance. For IP50HD, IP2xxUHD, IP3xxUHD, and IP500UHD systems are not interoperable.Specifications:Ethernet Port: 2 x LAN RJ45 connector (1 x PoE support)RS-232 Serial Port: 1 x DB-9 femaleGPIO Port: 1 x 6-Pin Phoenix connectorIR Input Port: 1 x 3.5mm stereo jackPoE consumption: 4.0W (typical), 4.5W (max load)Dimensions (W x D x H ): 96mm x 110mm x 26mmOperating Temperature: 32°F to 104°F (0°C to 40°C)Storage Temperature: -4°F to 140°F (-20°C to 60°C)Box Contents:1 x ACM2101 x IR Control Cable - 3.5mm to 3.5mm Cable1 x 6-pin Phoenix Connector1 x Mounting Kit
