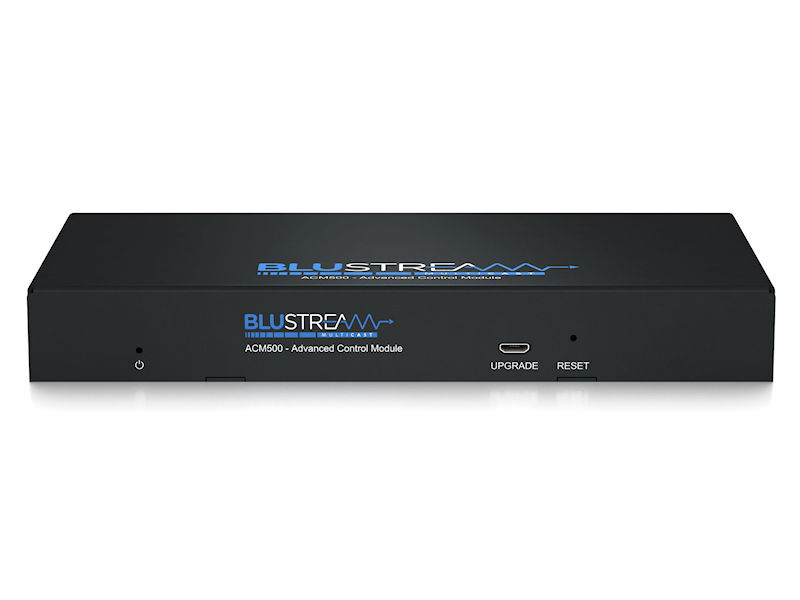

BLUSTREAM Advanced Control Module

The Blustream UHD SDVoE Multicast distribution platform allows distribution of the highest-quality, un-compromised 4K with zero latency Audio/Video over copper or optical fibre 10GbE networks.The ACM500 Control Module features advanced third party control of the SDVoE 10GbE Multicast system using TCP/IP, RS-232 and IR. Includes a web interface module for control and configuration of the Multicast system and features 'drag and drop' source selection with video preview and independent routing of IR, RS-232, USB / KVM, Audio and Video.Pre-built Blustream product drivers simplify Multicast product installation and negate the need for an understanding of complex network infrastructures.Key features:Web interface module for configuration and control of the Blustream SDVoE 10GbE Multicast systemIntuitive 'drag & drop' source selection with video preview feature for active monitoring of system statusAdvance signal management for independent routing of IR, RS-232, USB/KVM, audio and videoAuto system configuration2x RJ45 LAN connections to bridge existing network to Multicast video distribution network, resulting in:- Better system performance as network traffic is separated- No advanced network setup required- Independent IP address per LAN connection- Allows simplified TCP/IP control of Multicast systemDual RS-232 ports for control of the Multicast system, or pass-through of control to remote third party devices5V/12V IR integration for control of Multicast systemPoE (Power over Ethernet) to power Blustream product from PoE switchLocal 12V power supply (optional) should Ethernet switch not support PoESupport for iOS and Android App control3rd Party drivers available for all major control brandsPlease note: Compatible with IP500UHD and IP510UHD only. IP50HD, IP2xxUHD, IP3xxUHD, and IP5xxUHD systems are not interoperable.Specifications:• Ethernet Port: 2 x 1Gb LAN RJ45 connector (1x PoE support)• RS-232 Serial Port: 2 x 3-Pin Phoenix connector• I/O Port: 1 x 6-Pin Phoenix connector• IR Input Ports: 1 x 3.5mm stereo jack• PoE draw: 7.9W (typical), 8.4W (max load)• Product Upgrade: 1 x Micro USB, female• Dimensions (W x D x H): 190.4mm x 93mm x 25mm• Operating Temperature: 32°F to 104°F (0°C to 40°C)• Storage Temperature: -4°F to 140°F (-20°C to 60°C)• Power Supply: PoE or 12V/1A DCBox Contents:1 x ACM5001 x IR Control Cable - 3.5mm to 3.5mm Cable4 x Rubber Feet1 x Mounting Kit
