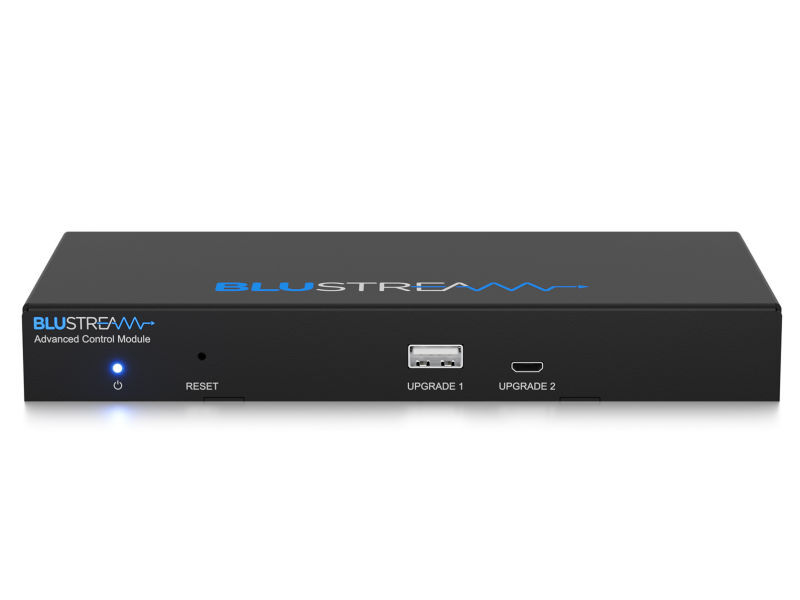

BLUSTREAM Advanced Control Processor AV-IP

Built on the foundation of our existing ACM platform, the ACM1000 continues to deliver the powerful core functionality our AV over IP customers rely on every day. These include one-touch configuration, intuitive drag-and-drop control via the web interface, and fully independent routing of video, audio, serial, IR, USB/KVM, and CEC signals.The ACM1000 introduces a complete rebuild of both the control module hardware and supporting management software. Powered by a quad-core processor, this next-generation platform unlocks a number of new intuitive features including 24/7 scheduling, enhanced source and display control, simultaneous switching, advanced presets, and pre-configured macro control. Together, these enhancements deliver greater automation, faster workflows, and a more intelligent control experience across the entire AV system.Key Features:Web interface module for configuration and control of Blustream AV over IP systemsIntuitive 'Drag & Drop' source selection with video preview feature for active monitoring of system statusAdvanced signal management for independent routing of video, audio, IR, RS-232, USB/KVM, and CEC (AVoIP platform dependent)Auto system configuration using in-built 'Setup Wizard'Dual RJ45 LAN connections to bridge business / home network to AV over IP video distribution network, resulting in:- Better system performance as network traffic is separated (different networks, or VLAN's)- No advanced network setup required- Independent IP address per LAN connection- Allows for simplified TCP / IP control of AV over IP systemDual RS-232 ports for control of the AV over IP system, and passthrough of control commands to remote third party devices5V/12V IR integration for control of AV over IP systemConfigurable GPIO ports for integration with 3rd party productsDirect control command processing allowing IP to IR, serial or CEC to any end point in the systemGUI based source and display remote for direct control using IR, serial and CEC24/7 scheduling functionalityMacro functionality for recall of multiple commands from a schedule, GPIO, or API commandGrouping of receivers for instant recall of input switching to multiple displaysPreset functionality for recalling set I/O's from a single GUI button press or API commandPoE (Power over Ethernet) to power Blustream product from PoE switchLocal 12V power supply (optional) should AV over IP network not support PoE3rd Party drivers available for major control brandsSpecifications:Dimensions (W x D x H ): 190mm x 93mm x 25mmProduct Weight: 0.5kgOperating Temperature: 32°F to 104°F (0°C to 40°C)Storage Temperature : -4°F to 140°F (-20°C to 60°C)Power Draw: 4W (max)Ethernet port: 2x 1Gb LAN RJ45 connector (1x PoE support)RS-232 serial port: 2x 3-Pin Phoenix connectorI/O port: 1x 6-Pin Phoenix connectorIR Input ports: 1x 3.5mm stereo jackProduct upgrade: 1x Micro USB, 1x USB Type-A, femalePower Supply: PoE or 12V/1A DCPackage Contents:1 x ACM10004 x Rubber Feet1 x Mounting Kit1 x Quick Reference Card
