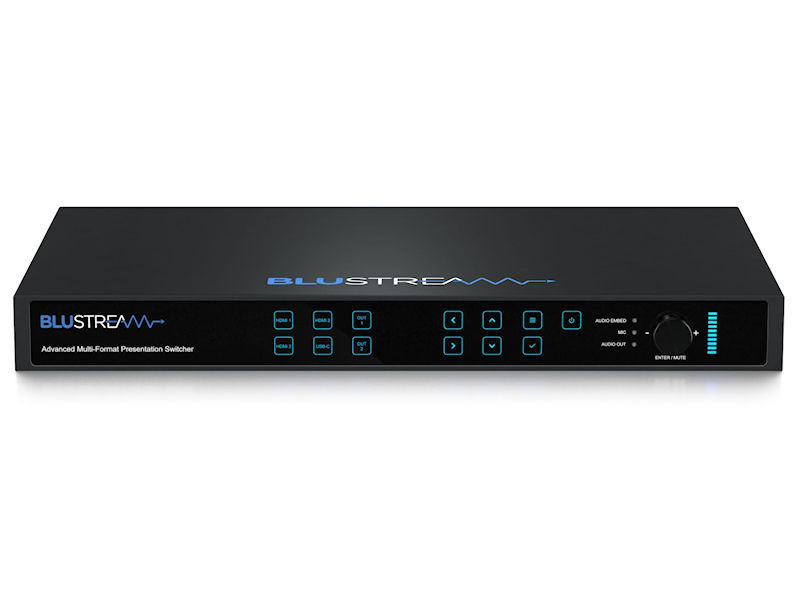

BLUSTREAM Advanced Multi Format Switch

The Blustream AMF42AU is an advanced 4K 4x2 HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 multi-format presentation switcher featuring 3 x HDMI 2.0 and 1 x USB-C input to 2 x HDMI 2.0 / 1x HDBaseT™ output.It provides enhanced features including seamless switching, independent video scaling on outputs, MIC input with audio mixing and 48V phantom power, PoC to power a Blustream compatible HDBaseT™ receiver.The AMF42AU also features Web GUI for control and configuration, source and display control via CEC, RS-232 and IR, manual or automated source selection, IR pass-through and control via front panel, IR, RS-232 and TCP/IP.It is an ideal product for a boardroom, classroom or huddle-space application.Key Features:Features 3 x HDMI and 1 x USB-C inputs which can be independently routed to 2 x HDMI / HDBaseT™ outputsDual HDMI / HDBaseT™ on output 2Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable up to 70m 1080p (4K up to 40m)*Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification*Independent video scaling on outputsSupports resolutions up to 4K UHD 60Hz 4:4:4Seamless source switching with manual or auto source selectionSupports USB Type C up to 4K UHD 60Hz 4:4:4, DP1.2 with 40W charging capabilityAudio breakout to analogue L/R audio and Toslink (S/PDIF) digital outputs concurrentlyARC breakout available via S/PDIF when using RX70CS receiverAnalogue audio inputs and output support both balanced and unbalanced audioFeatures MIC mixer over source audio with independent level adjustmentMIC input supports line level or 48V Phantom powerConfigurable source and display control via CEC, RS-232 and IRWeb interface module for control and configuration of matrix3rd party drivers available for major control brandsHDCP 2.2 compliant with advanced EDID management*All features designed to work with the Blustream RX70CS HDBaseT™ receiver. HDBaseT™ output is compatible with all Blustream receivers however functionality may vary. Refer to product manual for compatibility before connecting.Specifications:Video Input Connectors: 3 x HDMI Type A, 19-pin, female, 1 x USB-C Type CVideo Output Connectors: 2 x HDMI Type A, 19-pin, female, 1 x HDBaseT™ RJ45 connectorAudio Input Connectors: 2 x 5-pin phoenix connector (2ch balanced / unbalanced analogue audio)MIC Input Connectors: 1 x 3-pin phoenix connector Audio Output Connectors: 1 x 5-pin phoenix connector (2ch balanced / unbalanced analogue audio), 1 x Optical Toslink (S/PDIF)RS-232 Serial Ports: 1 x 3-pin phoenix connectorTCP/IP Control: 1 x RJ45, femaleIR Input Ports: 2 x 3.5mm stereo jackIR Output Ports: 1 x 3.5mm mono jackProduct Upgrade: 1 x USB Type A femaleRack Mountable: 1U rack height, rack ears includedCasing Dimensions (W x H x D): 437mm x 44mm x 265mmOperating Temperature: 32°F to 104°F (-5°C to +55°C)Storage Temperature: -4°F to 140°F (-25°C to +70°C)Power Supply: 24V/5A DCBox Contents:1 x AMF42AU1 x IR Remote Control1 x 24V/5A DC Power supply1 x Rack Mounting Kit1 x IR Receiver1 x IR Emitter1 x RS-232 Control Cable1 x Quick Reference Guide
