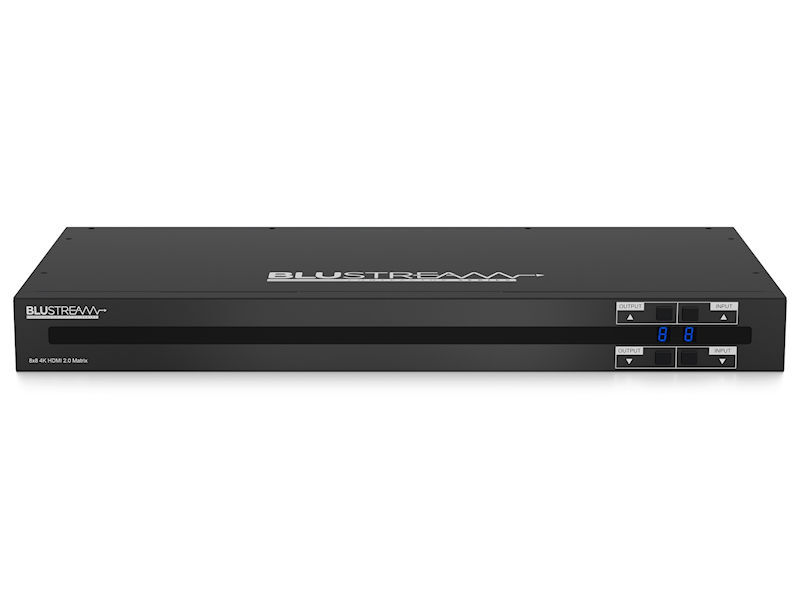

BLUSTREAM Contractor 8x8 4K HDMI2.0 Matrix

The Blustream Contractor CMX88CS 4K HDMI Matrix offers unprecedented performance and value for the custom installation market.The CMX88CS supports HDMI2.0 with HDCP2.2, allowing distribution of eight HDMI sources to eight displays. This enables all sources to be viewed as required within a matrix configuration.The unit transmits all HDMI resolutions up to and including 4K 60Hz 4:4:4. The 8-Way matrix also includes audio breakout, EDID management and a web browser interface module for control and configuration of the matrix.Key Features:Features 8x HDMI inputs which can be independently routed to 8x HDMI outputsSupports 4K UHD video including HDR (up to 4K @60Hz 4:4:4)Independent video down conversion on all HDMI outputs allowing a display only capable of supporting lower 4K video resolutions (4K 60Hz 4:2:0) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining outputsSupports all industry standard video resolutions including VGA-WUXGA and 480i-4KSupports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specificationsHDMI audio breakout to associated output analogue L/R audio and optical digital outputs concurrentlyWeb interface module for control and configuration of the MatrixControl via front panel, IR, RS-232 & TCP/IP3rd party drivers available for all major home control brandsAdvanced EDID managementHDCP 2.2 compliantSpecifications:• Video Input Connectors: 8x HDMI Type A, 19-pin, female• Video Output Connectors: 8x HDMI Type A, 19-pin, female• Audio Output Connectors: 8x RCA (SPDIF), 8x Analogue audio RCA (L/R)• RS-232 Serial Port: 1x DB-9, female• TCP/IP Control: 1x RJ45, female• IR Input Ports: 1x 3.5mm stereo jack• Casing Dimensions (W x D x H): 441mm x 226mm x 45mm• Dimensions Inc. Connections (W x D x H): 441mm x 234mm x 51mm• Operating Temperature: 32°F to 104°F (0°C to 40°C)• Storage Temperature : -4°F to 140°F (-20°C to 60°C)• Power Supply : 12V/5A DCBox Contents:1x CMX88CS1x 12V / 5A DC power supply1x Remote control1x IR receiver1x IR control cable - 3.5mm to 3.5mm cable1x Mounting kit1x Quick reference guide
