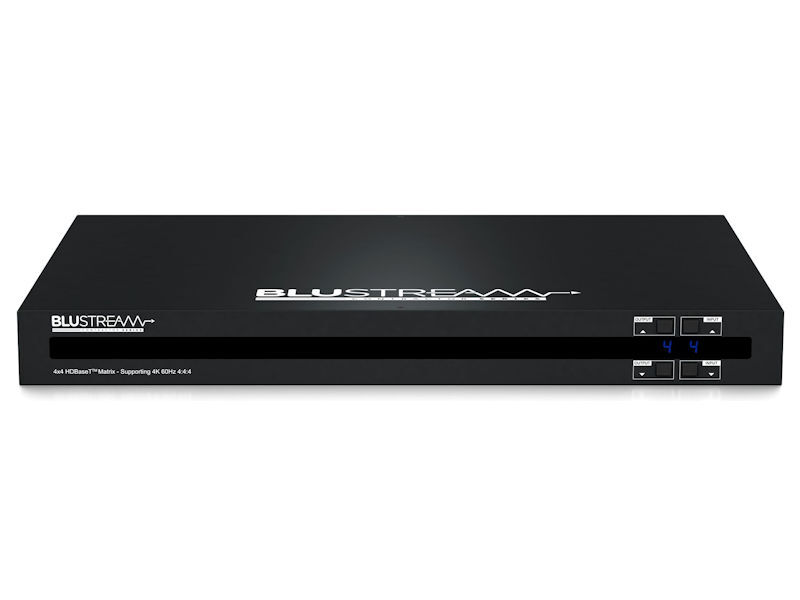

BLUSTREAM Contractor HDBaseT™ 4x4 Matrix

The Blustream Contractor 4x4 HDBaseT™ matrix offers unprecedented performance and value for the custom installation market.The C44CS-KIT is a HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 Matrix utilising CSC technology to deliver HDMI, bi-directional IR, andPoC up to lengths of 70m over a single CAT cable.The matrix also provides advanced features including simultaneous HDBaseT™ / HDMI on output 1, video down conversion on HDBaseT™ outputs and a web browser interface module for control and configuration of the matrix.The C44CS-KIT is supplied with 4 x RX70CSL receivers.Key Features:Advanced HDBaseT™ technology offering distribution ofvideo and audio over a single CAT cableAdvanced Colour Space Conversion (CSC) supports HDMI 2.018Gbps specification including HDR*Features 4 x HDMI inputs which can be independently routed to 4 x HDBaseT™ outputsOutput 1 features simultaneous HDMI and HDBaseT™ outputVideo down-conversion on HDBaseT™ outputs allowing adisplay only capable of supporting lower video resolutions (4K60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video contentwhile still showing maximum original 4K UHD resolution on remaining video outputsSupports 4K 60Hz 4:4:4 UHD video up to 40mExtends HDMI 1080p video up to 70mSupports all industry standard video resolutions includingVGA-WUXGA and 480i-4KSupports all known HDMI audio formats including DolbyTrueHD, Dolby Atmos, Dolby Digital Plus and DTSHDMaster Audio transmissionWeb interface module for control and configuration of matrixSupports bi-directional IR on all HDBaseT™ outputsControl via front panel, iOS / Android App, IR, RS-232 or TCP/IPSupports 12V PoC (Power over Cable) to power compatible HDBaseT™ receiversSupplied with Blustream IR receivers and emitters3rd party drivers available for all major control brands1U design for 19” rack mount integration - mounting kit*CSC feature compatible with RX70CSL onlySpecifications:C44CS - Matrix:Video Input Connectors: 4 x HDMI Type A, 19-pin, femaleVideo Output Connectors: 1 x HDMI Type A, 19-pin, female, 4 x HDBaseT™ RJ45 connectorsTCP/IP Control: 1 x RJ45, femaleRS-232 Serial Ports: 1 x DB-9, femaleIR Input Ports: 5 x 3.5mm stereo jackIR Output Ports: 4 x 3.5mm mono jackRack Mountable: 1U rack height, rack ears includedCasing Dimensions (W x H x D): 437mm x 44mm x 300mm (without feet)RX70CSL Receiver:Video Input Connectors: 1 x HDBaseT™ RJ45 connectorsVideo Output Connectors: 1 x HDMI Type AIR Input Ports: 1 x 3.5mm stereo jackIR Output Ports: 1 x 3.5mm mono jackCasing Dimensions (W x H x D): 85mm x 24mm x 120mmMounting Wings: SuppliedC44CS-KIT:Power Supply: Internal 100-240V ACHDBT Power Output: 12V DC 0.8A per portOperating Temperature: 23°F to 122°F (-5°C to +50°C)Storage Temperature: -13°F to 158°F (-25°C to +70°CBox Contents:1 x C44CS Matrix4 x RX70CSL Receivers1 x Rack Mounting Kit4 x Mounting Kits for RX70CSL4 x Mounting Feet1 x Remote Control4 x IR Emitters5 x IR Receivers1 x Serial Cable - DB9 to DB91 x IR Control Cable - 3.5mm-3.5mm Cable1 x Quick Reference GuideIEC Power Cable(s)
