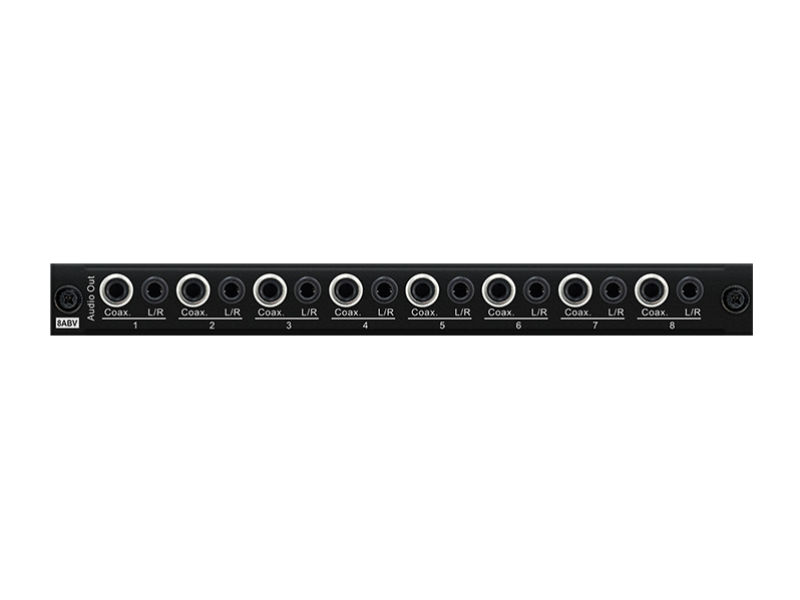

BLUSTREAM Custom Pro 8 Way Audio Breakout
SKU: PRO-8ABV
Trade price hidden
Prices are reserved for approved trade accounts. Register and we'll unlock the full catalogue pricing.
The PRO-8ABV audio breakout board offers 8x simultaneous coaxial digital and variable line-level analogue L/R audio outputs and features quick release card modu
Description & specs
The PRO-8ABV audio breakout board offers 8x simultaneous coaxial digital and variable line-level analogue L/R audio outputs and features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.Main featuresFeatures 8x HDMI audio breakouts from corresponding video zone outputs to coaxial digital and analogue L/R audio outputsAnalogue audio outputs include variable line-level control (supports 2ch PCM)Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix HubSpecifications:Audio Output Connectors: 8x RCA (SPDIF), 8x Analogue Left/Right audio (3.5mm stereo jackCard Dimensions (W x H x D): 182mm x 22mm x 177mmDimensions Including Connections (W x H x D): 202mm x 22mm x 188mmShipping Weight: 0.5kgOperating Temperature: 32°F to 104°F (0°C to 40°C)Storage Temperature : -4°F to 140°F (-20°C to 60°C)
