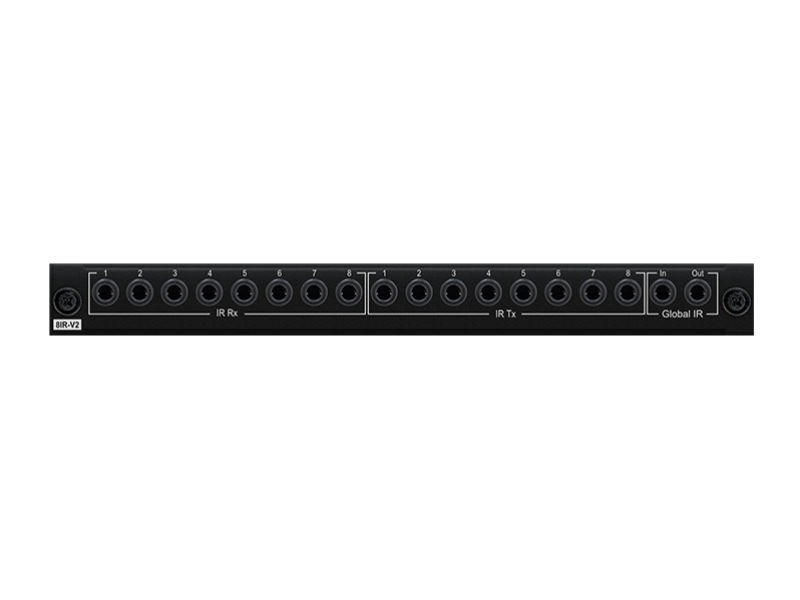

BLUSTREAM Custom Pro 8 Way IR Control
SKU: PRO-8IR-V2
Trade price hidden
Prices are reserved for approved trade accounts. Register and we'll unlock the full catalogue pricing.
The PRO-8IR-V2 IR routing board offers selectable 5V or 12V IR distribution with 8 x IR outputs for routed control of local source hardware and 8 x IR inputs fo
Description & specs
The PRO-8IR-V2 IR routing board offers selectable 5V or 12V IR distribution with 8 x IR outputs for routed control of local source hardware and 8 x IR inputs for distribution of IR to compatible HDBaseT™ receivers. It also features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.Main features:8 x IR outputs for routed control of local source hardware8 x IR inputs for distribution of IR to compatible HDBaseT™ receiversSelectable 5V or 12V IR distribution (12V IR requires compatible IR hardware and HDBaseT™ receivers)Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix HubSpecifications:IR Input Ports: 9 x 3.5mm stereo jackIR Output Ports: 9 x 3.5mm mono jackCard Dimensions (W x H x D): 202mm x 22mm x 177mmDimensions Including Connections (W x H x D): 202mm x 22mm x 188mmShipping Weight: 0.5kgOperating Temperature: 32°F to 104°F (0°C to 40°C)Storage Temperature: -4°F to 140°F (-20°C to 60°C)
