BLUSTREAM Custom Pro 8 Way RS232 Control
SKU: PRO-8RS232
Trade price hidden
Prices are reserved for approved trade accounts. Register and we'll unlock the full catalogue pricing.

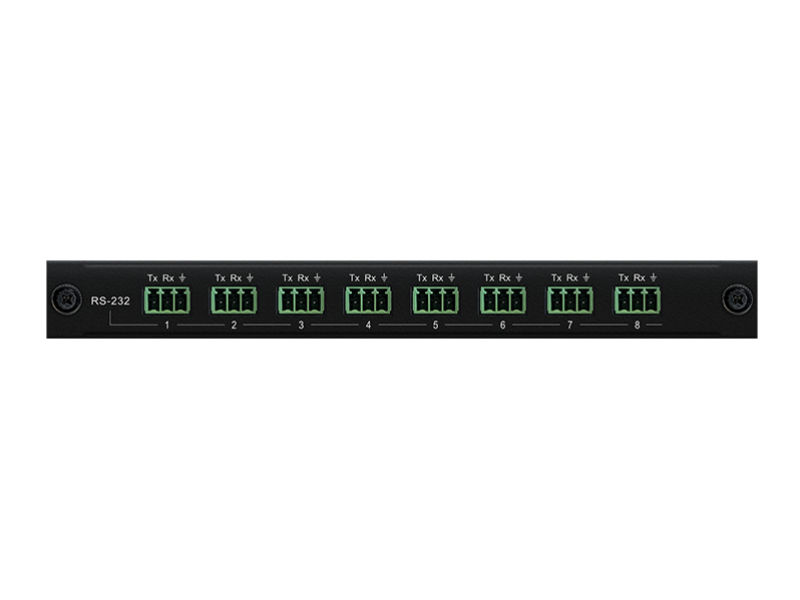

The PRO-8RS232 RS-232 routing board offers 8x bi-directional RS-232 ports for serial communication from all input and output locations when used with compatible
Description & specs
The PRO-8RS232 RS-232 routing board offers 8x bi-directional RS-232 ports for serial communication from all input and output locations when used with compatible Blustream HDBaseT™ transmitters & receivers. The PRO-8RS232 also features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.Main features:Features 8x Bi-directional RS-232 ports for serial communication to corresponding Blustream HDBaseT™ zone receiversQuick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix HubSpecificationsRS-232 serial ports: 8x 3-Pin Phoenix connectorCard Dimensions (W x H x D): 190mm x 22mm x 177mmDimensions Including Connections (W x H x D): 190mm x 22mm x 188mmShipping Weight: 0.5kgOperating Temperature: 32°F to 104°F (0°C to 40°C)Storage Temperature : -4°F to 140°F (-20°C to 60°C)
