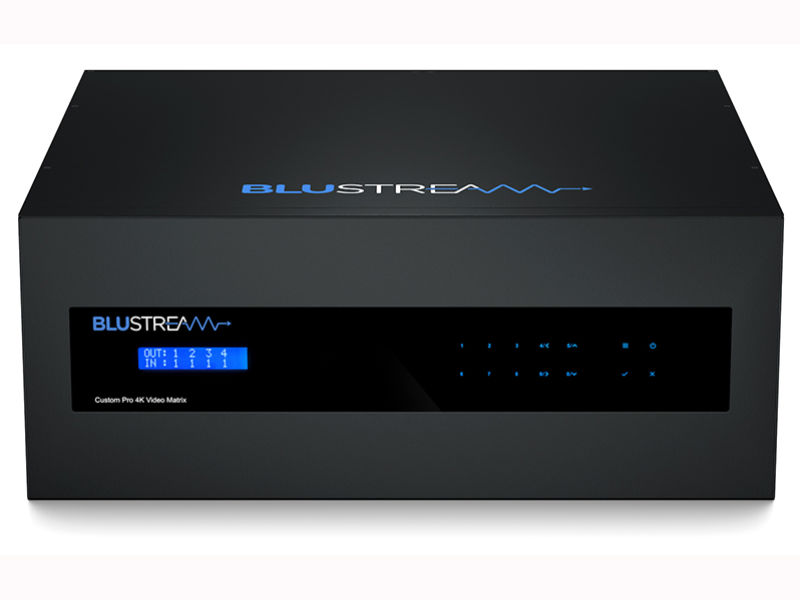

BLUSTREAM CustomPro 16x16 CSC Matrix

The pre-configured range of Custom Pro Matrix achieve new levels of both performance and flexibility. The Custom Pro PRO16HBT100CS has been designed to operate in complex and challenging AV environments.Main features:Pre-configured Custom Pro matrix bundle with 16 x video inputs, 16 x video outputs, Audio breakout, and 2-way IR controlSupports 4K UHD video up to 4K 60Hz 4:4:4 (18Gbps) over HDBaseT™ using Colour Space Conversion up to 70m at 4K 60Hz 4:4:4, or up to 100m at 1080pHDBaseT™ CSC output boards feature independent automatic downscaling of up to 4K 60Hz 4:4:4 video input to the following formats (HDMI outputs are native pass-through): 1080p@ 60Hz (for screens that do not support 4K) / 4K 60Hz 4:2:0 (for screens that do not support full 4K 60Hz 4:4:4)16 x analogue L/R audio inputs which can be embedded onto corresponding HDMI / HDBaseT™ zone outputsExtend 16 x IR outputs for routed control of local source equipment16 x IR inputs for distribution of IR to compatible Blustream HDBaseT™ receiversOptional RS-232 control board for bi-directional serial control with equipment connected to Blustream HDBaseT™ receivers (PRO-8RS232 cards sold separately)Audio breakout board with line-level volume controlWeb browser interface for control and configuration of matrixControl of matrix via front panel, RS-232, TCP/IP and Web GUI / AppSupports PoC (Power over Cable) when used with compatible Blustream HDBaseT™ receivers3rd Party drivers available for major commercial & residential control brandsAdvanced EDID managementHDCP 2.2 compliantUsed with Blustream HEX100CS-RX receivers (sold separately)Used with Blustream HEX70CS-RX receivers - if distance at 4K does not exceed 40m, or 70m at 1080p (sold separately)
