BLUSTREAM Dante® Bluetooth Audio Encoder

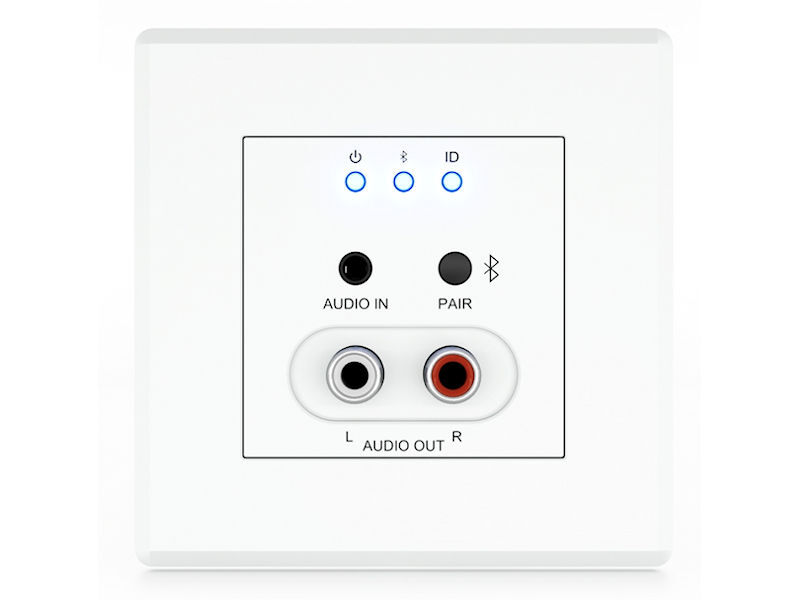

The DA11ABL-WP-EU-V2 is a multi-input / output wall plate to convert Bluetooth and analogue audio within a digital Dante® networked audio system. The DA11ABL-WP-EU-V2 converts 2 input channels of Bluetooth or unbalanced audio to Dante® digital audio, and 2 channels of Dante® audio to 2 x output channels of unbalanced audio. The DA11ABL-WP-EU-V2 is a plug & play device that is powered using PoE (Power over Ethernet), or via 12V power supply, offers support for AES67 RTP audio transport and magnetic faceplate design allows for both UK & EU backbox compatibility. The DA11ABL-WP-EU-V2 is the ideal BYOD interface to allow any Bluetooth device to stream audio wirelessly to a Dante® audio system. Key Features:Dante® network wall plate interface for Bluetooth and analogue L/R audio inputs, and L/R audio outputsConverts 2ch Bluetooth, or un-balanced audio sources to Dante® audio Converts 2x Dante® audio channels to un-balanced audio outputsAdjustable input sensitivity from +24dBu to -28dBV and output gain from +20dBu to -28 dBV via web GUI or APIDante® Audio Supports 44.1, 48, 88.2 & 96 KHz sample rates @ 16, 24 & 32 BitConfigurable Dante® device latency (supports 2, 3, 4, 5 or 10ms configurable using Dante® Controller)Supports AES67 RTP audio transportFeatures Class 0 IEEE 802.3af PoE for powering of product from any PoE switchSupports power via 12V DC adapter (not included) for when network switch does not support PoEWhite magnetic faceplate surround allowing for both UK & EU backbox compatibilityIn-built web-GUI for configuration and controlSpecifications:Audio Input Connectors: 1 x Analogue Left / Right audio (3.5mm stereo jack)Audio Output Connectors: 2 x Analogue RCA (Left / Right)Network Connectors: 1 x PoE Dante® Ethernet Connection (RJ45)Bluetooth: Bluetooth V5.0 - SBC / MP3 / AAC / APT-X / APTX-LL / APTX-HD, 44.1K-48KHz 16 / 24BitConfiguration Switches: 1 x Push button (connect / selection)Firmware Upgrade: 1 x Micro-USB UART portModule Dimensions (W x H x D): 74mm x 74mm x 50mm (without faceplate)Faceplate Dimensions (W x H x D): 85mm x 85mm x 5mmCut Out Dimensions (W x H x D): 52mm x 55mm x 38mmMounting Hole Spacing: UK 60mm CTC, EU 60mm CTCBackbox Requirements: UK single gang backbox / EU single gang backboxOperating Temperature: 32°F to 104°F (0°C to 40°C)Storage Temperature: - 4°F to 140°F (- 20°C to 60°C)Power Supply: Class 1 IEEE 802.3af POE PD or 12V/1A DC, 2-Pin Phoenix connectorBox Contents:1 x DA11ABL-WP-EU-V21 x Magnetic Faceplate1 x Quick Reference Guide
