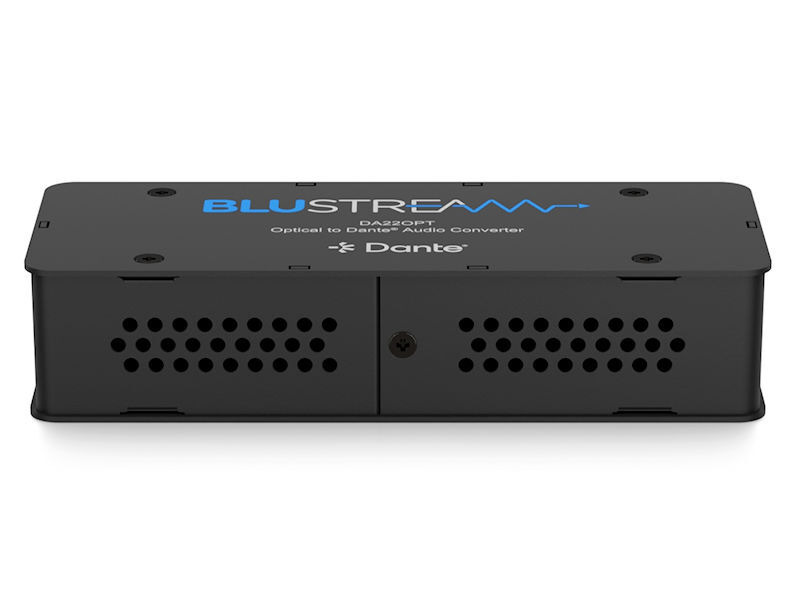

BLUSTREAM Dante® Optical

The Blustream DA22OPT has been designed to both encode 2ch optical S/PDIF audio to a Dante® digital signal, and decode a Dante® digital signal to 2ch optical S/PDIF audio.It is a plug & play device that is powered using PoE (Power Over Ethernet). The DA22OPT also supports AES67 RTP audio transport.Key FeaturesEncodes 2ch optical S/PDIF audio to a Dante® digital signalDecodes a 2ch Dante® digital signal to optical S/PDIF audioSupports: 44.1, 48, 88.2 & 96 KHz sample rates @ 16, 24 & 32 BitConfigurable Dante® device latency (supports 2, 3, 4, 5 or 10ms configurable using Dante® Controller)+6dB / -24dB input sensitivity and output gain control adjustmentSupports AES67 RTP audio transportFeatures Class 0 802.3af PoE for powering of product from any PoE switchLocal 12v power supply input for when network switch does not support PoE (PS121PH power supply sold separately)Specifications:Audio Input/Output Connectors: 1 x RJ45, female (100 Mbps Dante® network) | 2 x Optical Toslink (S/PDIF)Casing Dimensions (L x W x H): 120mm x 47mm x 26mmOperating Temperature: 32°F to 104°F (0°C to 40°C)Storage Temperature: - 4°F to 140°F (- 20°C to 60°C)Power Supply: Class 0 IEEE 802.3af POE PD, or 12V power supply (sold separately)Box Contents:1 x DA22OPT1 x Quick Reference Guide
