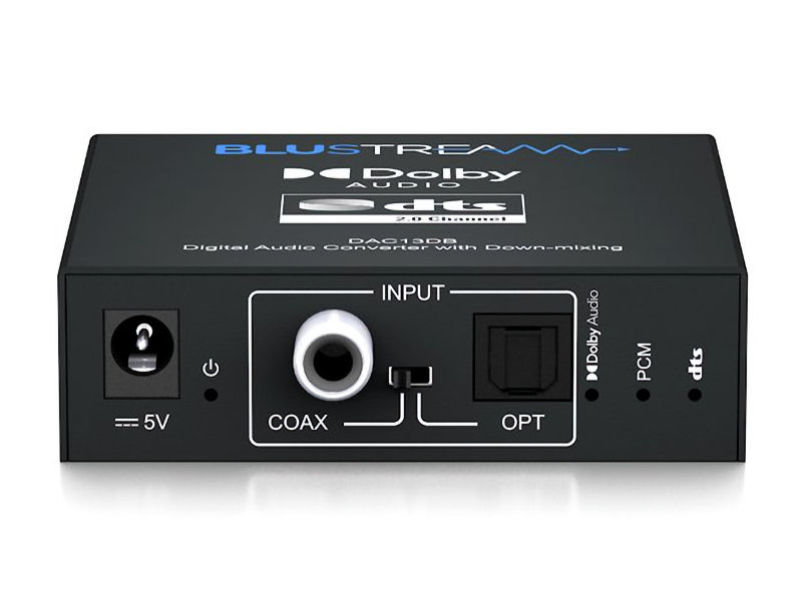

BLUSTREAM Dolby® / DTS Audio Converter

The Blustream DAC13DB has been designed to convert and downmix embedded 5.1ch Dolby Audio or DTS Audio within an optical or coaxial audio signal into a stereo 2ch signal available on optical, coaxial and analogue audio outputs.Key Features:Down-mixes 5.1ch Dolby Audio® and DTS Audio from optical Toslink or coaxial digital audio input signals from a compatible source device to 2ch stereo audioSupporting Dolby Audio® TechnologySimultaneously outputs down-mixed 2ch audio via analogue, optical Toslink or coaxial digital audio outputsDolby Audio® and DTS Audio formats supported:- PCM 2ch- Dolby Digital 2ch- Dolby Digital 5.1ch- DTS 2ch- DTS 5.1chSupports audio signals up to 24-bit with sampling rates up to 96kHzDolby Audio is a registered trademark of Dolby Laboratories Licensing CorporationSpecifications:Audio Input Connectors: 1 x S/PDIF Coaxial RCA Digital, 1 x S/PDIF Optical Toslink DigitalAudio Output Connectors: 1 x S/PDIF Coaxial RCA Digital, 1 x S/PDIF Optical Toslink Digital, 2 x RCA Stereo Analogue (L/R)Casing Dimensions (W x D x H): 80mm x 76mm x 24mm (without connections)Dimensions (W x D x H): 80mm x 91mm x 24mmOperating Temperature: 32°F to 104°F (-5°C to +55°C)Storage Temperature: -4°F to 140°F (-25°C to +70°C)Power Supply: 5V/1A DCBox Contents:1 x DAC13DB1 x Mounting Kit1 x 5V/1A DC Power Supply1 x Quick Reference Guide
