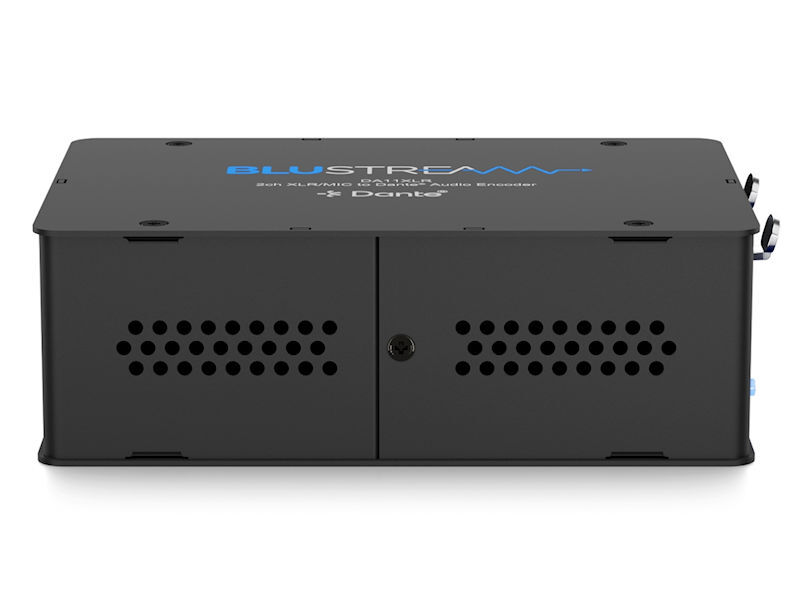

BLUSTREAM Dual XLR MIC to Dante® Encoder

The DA11XLR is a multi-input XLR to Dante® networked audio system. The DA11XLR converts 2 input channels of balanced / unbalanced / MIC audio with switchable 48V Phantom power to Dante® digital audio.The DA11XLR is a plug & play device that is powered using PoE (Power over Ethernet), or via 12V power supply, offers support for AES67 RTP audio transport.Key Features:Dante® network interface for 2 x XLR audio inputsConverts 2 x balanced / unbalanced / MIC audio sources to Dante® audio channelsSwitchable 48V Phantom power for each MIC XLR inputAdjustable MIC / line sensitivity from +24dBu to -28dBV for each XLR inputSupports: 44.1, 48, 88.2 & 96 KHz sample rates @ 16, 24 & 32 BitConfigurable Dante® device latency (supports 2, 3, 4, 5 or 10ms configurable using Dante® Controller)Supports AES67 RTP audio transportFeatures Class 0 802.3af PoE for powering of product from any PoE switchLocal 12V power supply input for when network switch does not support PoE (PS121PH power supply sold separately)Specifications:Casing Dimensions (L x W x H): 120mm x 84mm x 40mmOperating Temperature: 32°F to 104°F (0°C to 40°C)Storage Temperature: - 4°F to 140°F (- 20°C to 60°C)Power Supply: Class 0 IEEE 802.3af POE PD or 12V/1A DC 2-Pin Phoenix connectorAudio Input Connectors: 2 x Analogue Balanced / Unbalanced 3-Pin XLR connectorAudio Output Connector: 1 x RJ45, female (100 Mbps Dante® network)Box Contents:1 x DA11XLR1 x Quick Reference Guide
