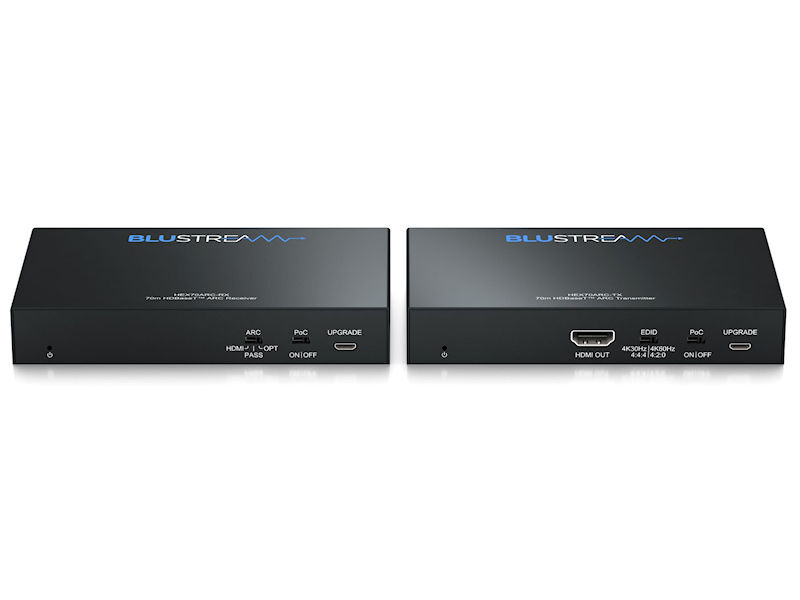

BLUSTREAM HDBaseT™ ARC Extender SET

The HEX70ARC-KIT 4K HDBaseT™ ARC extender set offers market leading features for the custom installation industry.The product delivers HDMI, ARC, Optical Audio Return, Bi-directional IR and Bi-directional PoC (Power over Cable) up to lengths of 70m (40m at 4K 60Hz 4:2:0).Key Features:Advanced HDBaseT™ technology offering uncompressed video and audio with zero latencyExtends HDMI 1080p up to a distance of 70m over a single CAT cableSupports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)Supports all industry standard video resolutions including VGA-WUXGA and 480i-4KSupports ARC (Audio Return Channel) from connected display via HDMI ARC or optical digital inputFeatures 1 x HDMI loop-out on HEX70ARC-TX for integrating local displays or cascading to multiple devicesSupports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission (TX to RX)Bi-directional IR pass-throughSupplied with Blustream IR receiver and emitterSupports bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver endHDCP 2.2 compliant with smart EDID managementAdvanced Audio Return Channel (ARC) FunctionalityPlease note: Optical and L/R audio breakout on the HEX70ARC-TX are for audio return channel use only. HDMI source audio cannot be broken out from these connections.Specifications:HEX70ARC-TXVideo Input Connectors: 1 x HDMI Type A, femaleVideo Output Connectors: 1 x HDBaseT™ RJ45 connector, 1 x HDMI Type A, femaleAudio Output Ports: 1 x Optical (S/PDIF), 1 x 3.5mm L/R analogue audio (audio return only)IR Input Port: 1 x 3.5mm stereo jackIR Output Port: 1 x 3.5mm mono jackProduct Upgrade: 1 x Micro-USB, femaleCasing Dimensions (W x D x H): 135 x 84 x 21mmHEX70ARC-RXVideo Input Connectors: 1 x HDBaseT™ RJ45 connectorVideo Output Connectors: 1 x HDMI Type A, femaleAudio Input Port: 1 x Optical (S/PDIF)IR Input Port: 1 x 3.5mm stereo jackIR Output Port: 1 x 3.5mm mono jackProduct Upgrade: 1 x Micro-USB, femaleCasing Dimensions (W x D x H): 135 x 84 x 21mm Power Supply: 1 x 24V/1.25A DC, 4-pin DIN connectorBox Dimensions (W x D x H): 248 x 151 x 103mmOperating Temperature: 32°F to 104°F (-5°C to +55°C)Storage Temperature: -4°F to 140°F (-25°C to +70°C)Box Contents:1 x HEX70ARC-TX1 x HEX70ARC-RX1 x 24V/1.25A DC Power Supply1 x IR Emitter1 x IR Receiver2 x Mounting Bracket Sets1 x Quick Reference Guide
