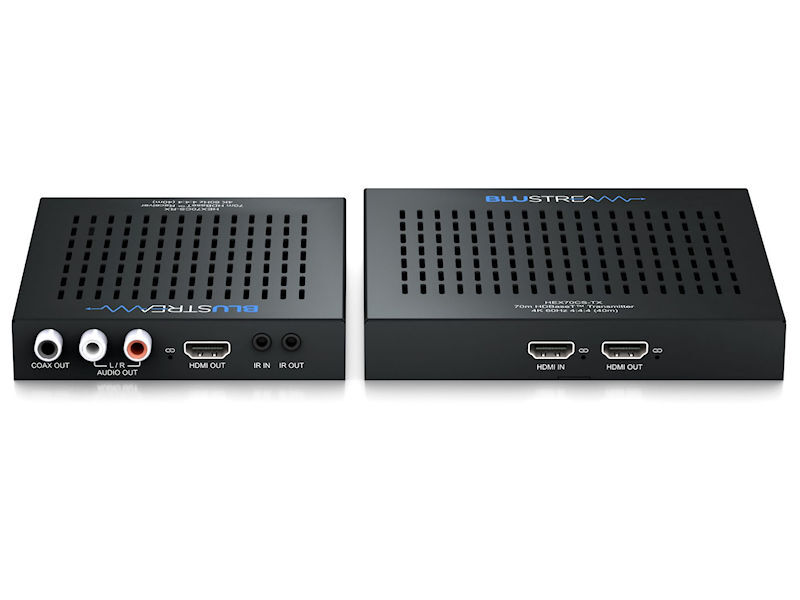

BLUSTREAM HDBaseT™ CSC Extender SET

The HEX70CS-KIT HDMI2.0 4K60Hz 4:4:4 (18Gbps) HDCP2.2 HDBaseT™ extender set offers market leading features and outstanding value utilising CSC technology with video down conversion.The product extends HDMI, Bi-directional IR & RS-232 and Bi-directional PoH (PoE) up to lengths of 70m (4K to 40m). The Transmitter includes a HDMI loop-out for integrating local displays or cascading to multiple devices. The Receiver features simultaneous analogue stereo and digital coax audio breakout.Key Features:Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cableAdvanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDRVideo down-conversion on HDMI Receiver output allows a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive the native 4K 60Hz 4:4:4 or 4K 60Hz 4:2:0 video content while still showing maximum original 4K UHD resolution on the Transmitter HDMI loop out.Supports 4K 60Hz 4:4:4 UHD video up to 40mExtends HDMI 1080p video up to 70mFeatures 1x HDMI loop-out on HEX70CS-TX for integrating local displays or cascading to multiple devicesSupports all industry standard video resolutions including VGA-WUXGA and 480i-4KSupports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissionsHDMI re-clocking on the HDBaseT™ Receiver to help solve HDMI HDCP, compatibility and handshaking issuesHDMI audio breakout to analogue L/R audio and coaxial digital outputs concurrentlySupports bi-directional RS-232 pass throughSupports bi-directional IR pass throughSupplied with Blustream 5V IR receiver and emitterAdvanced EDID managementHDCP2.2 compliantSpecifications:HEX70CS-TX:Video Input Connectors: 1 x HDMI Type A, femaleVideo Output Connectors: 1 x HDBaseT™ RJ45 connector, 1 x HDMI Type A femaleRS-232 Serial Port: 1 x DB-9 femaleIR Input Ports: 1 x 3.5mm stereo jackIR Output Ports: 1 x 3.5mm mono jackEDID DIP Switch: 4-pinHEX70CS-RX:Video Input Connectors: 1 x HDBaseT™ RJ45 connectorVideo Output Connectors: 1 x HDMI Type A, femaleRS-232 Serial Port: 1 x DB-9 femaleIR Input Ports: 1 x 3.5mm stereo jackIR Output Ports: 1 x 3.5mm mono jackAudio Output Connectors: 1 x RCA (SPDIF) & 2 x Analogue RCA (Left / Right) Power Supply: 12V/2A DC, screw type connectorPower Consumption: 12.7WTransmitter Dimensions (W x D x H): 143 x 134 x 22mm (without connections)Transmitter Dimensions (W x D x H): 143 x 141 x 22mm (with connections)Receiver Dimensions (W x D x H): 113 x 124 x 22mm (without connections)Receiver Dimensions (W x D x H): 113 x 138 x 22mm (with connections)Ind. Extender Weight: 0.35kg (excluding accessories)Operating Temperature: 32°F to 104°F (0°C to 40°C)Storage Temperature: -4°F to 140°F (-20°C to 60°C)Mounting Kits IncludedBox Contents:1 x HEX70CS-TX1 x HEX70CS-RX2 x Mounting Brackets1 x 12V/2A Power Supply1 x IR Emitter1 x IR Receiver1 x Quick Reference Guide
