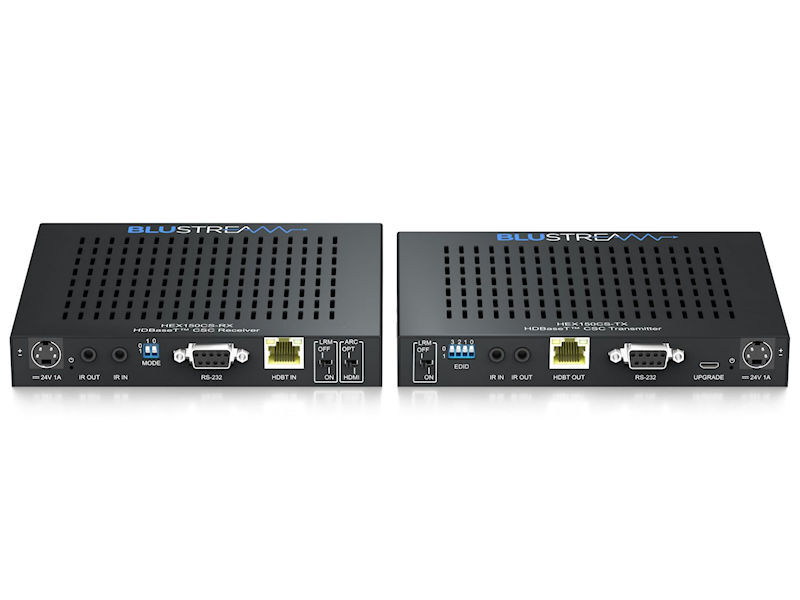

BLUSTREAM HDBaseT™ CSC Extender SET 18Gbps

The Platinum Range of HDBaseT™ products from Blustream offer the very best in performance and flexibility.The HEX150CS-KIT extender set is an industry leading HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 HDBaseT™ solution utilising CSC technology with video down conversion.It supports HDMI, bi-directional IR, RS-232 and PoH (PoE) up to lengths of 150m over a single CAT cable. The HEX150CS-KIT also provides enhanced features including ARC via HDMI or optical (S/PDIF) and Ethernet pass through.Key Features:Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cableAdvanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR supportVideo down-conversion on outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 or 4K 60Hz 4:2:0 video content while still showing maximum original 4K UHD resolution on remaining video outputsSupports 4K 60Hz 4:4:4 UHD video up to 100mExtends HDMI 1080p video up to 150m (HDBaseT™ long-reach mode)HDMI loop out on TransmitterSupports all industry standard video resolutions including VGA-WUXGA and 480i-4KHDMI re-clocking on the HDBaseT™ receiver to help solve HDMI HDCP, compatibility, and handshaking issuesSupports ARC (Audio Return Channel) from display via HDMI and optical digital inputsSupports audio return to HDMI, optical digital, and analogue L/R audio outputs (analogue output supports 2ch PCM only)Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmissionBi-directional 10/100BaseT Ethernet pass-throughBi-directional IR & RS-232 pass-throughSupplied with Blustream 5V IR receiver and emitterBi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver endAdvanced EDID managementHDCP 2.2 supportSpecifications:HEX150CS-TX:Video Input Connectors: 1 x HDMI Type A, femaleVideo Output Connectors: 1 x HDBaseT™ RJ45 connectorAudio Output Connectors: 2 x RCA (L/R), 1 x optical (SPDIF)Ethernet Port: 1 x RJ45 connectorRS-232 Serial Port: 1 x DB-9 femaleIR Input Ports: 1 x 3.5mm stereo jackIR Output Ports: 1 x 3.5mm mono jackEDID: 4-pin DIP switchPower Supply: 1 x 24V/1A DC, 4-pin DIN connectorHEX150CS-RX:Video Input Connectors: 1 x HDBaseT™ RJ45 connectorVideo Output Connectors: 1 x HDMI Type A, femaleAudio Input Connectors: 1 x Optical (SPDIF)Audio Output Connectors: 1 x 3.5mm stereo jack (L/R), 1 x RCA Coaxial DigitalEthernet Port: 1 x RJ45 connectorRS-232 Serial Port: 1 x DB-9 femaleIR Input Ports: 1 x 3.5mm stereo jackIR Output Ports: 1 x 3.5mm mono jackPower Supply: 1 x 24V/1A DC, 4-pin DIN connector Casing Dimensions (W x D x H): 148mm x 134mm x 22mm (RX), 156mm x 123mm x 23mm (TX)Dimensions (W x D x H): 148mm x 153mm x 22mm (RX), 156mm x 135mm x 23mm (TX) (including connections)Operating Temperature: 32°F to 104°F (0°C to 40°C)Storage Temperature : -4°F to 140°F (-20°C to 60°C)Mounting Kits includedPower Supply: 1 x 24V/1A DC, screw connectorBox Contents:1 x HEX150CS-TX1 x HEX150CS-RX1 x 24V/1A DC Power Supply1 x IR Receiver1 x IR Emitter2 x Mounting Brackets1 x Quick Reference Guide
